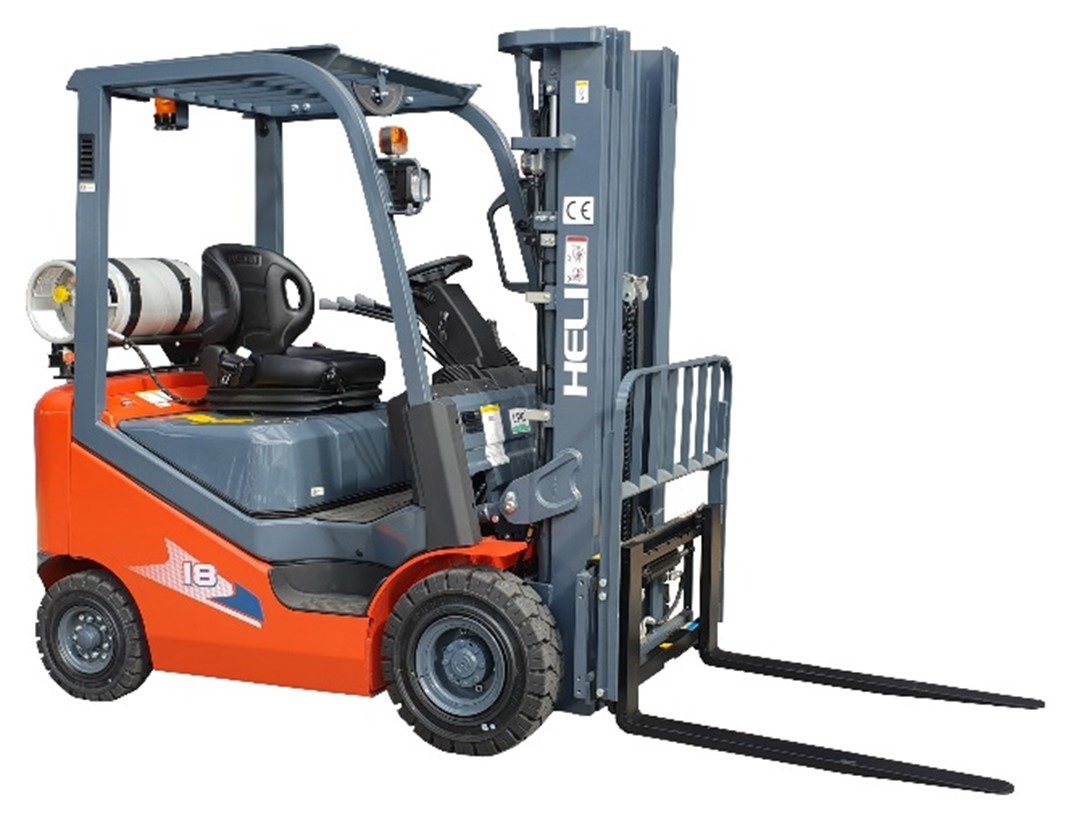

Heli H3 1,000kg to 1,800kg forklift range with Nissan LPG engine
Delivery fees may apply. Contact us for full pricing.
Specifications
Key Features:
- Lift capacities of 1000kg/1500kg/1800kg
- Available with LPG or diesel engines
- Lift height of 3000mm
- Improved performance, superior quality
- Vibration and noise reduced significantly

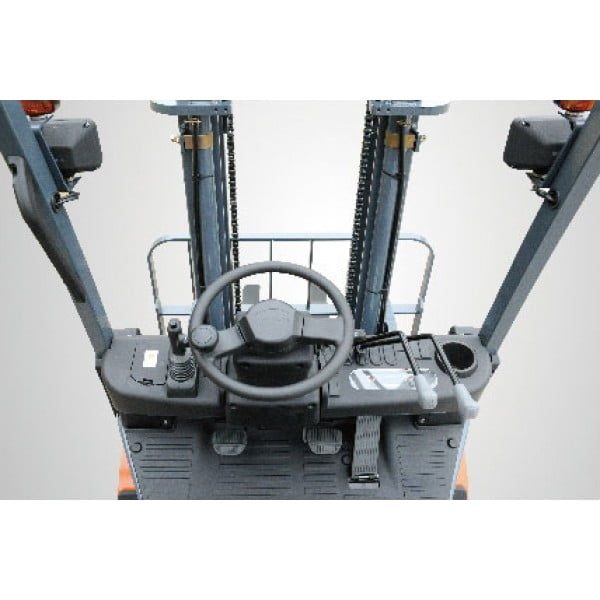

- Larger operator workspace and better view
Specifications:
| Model | unit | CPC(D)10/CP(Q)(Y)D10 | CPC(D)15/ CP(Q)(Y)D15 | CPC(D)18/ CP(Q)(Y)D18 | |
| Power Unit | Diesel/Gasoline/LPG/Dual Fuel | ||||
| Rated Capacity | kg | 1000 | 1500 | 1750 | |
| Load Center | mm | 500 | |||
| Standard lift height | mm | 3000 | |||
| Free lift height | mm | 152 | 155 | 155 | |
| Overall length(with fork/without fork) | mm | 3197/2277 | 3201/2281 | 3219/2299 | |
| Overall width | mm | 1070 | |||
| Overall height(overhead guard) | mm | 2140 | |||
| Wheel base | mm | 1450 | |||
| Total Weight | kg | 2458 | 2760 | 2890 | |
For ALL other models please enquire.
