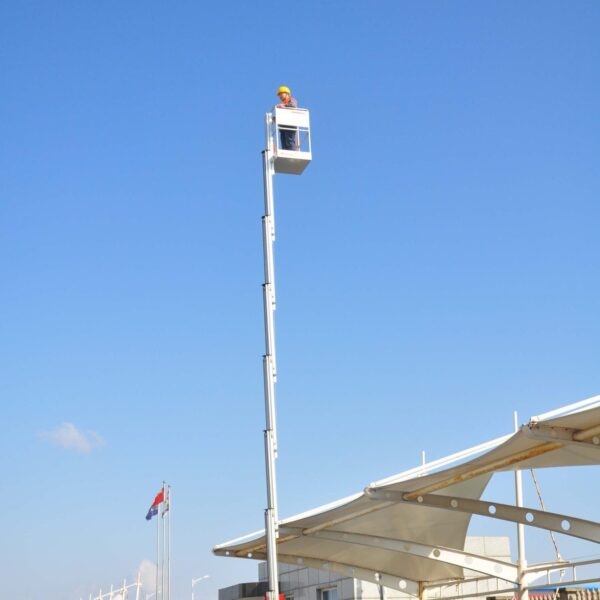

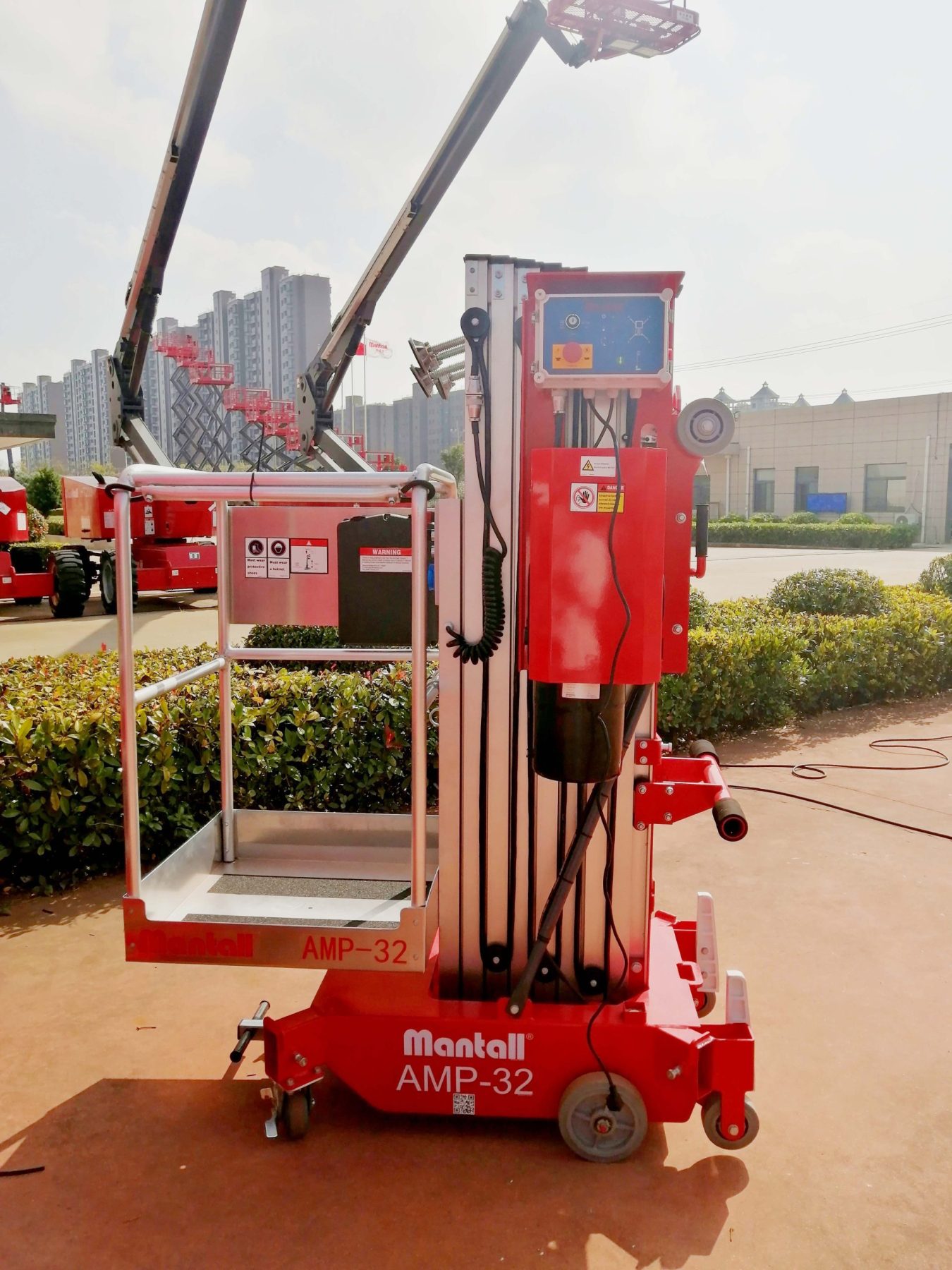

AMP-32 aerial work platform
Original price was: $11,990.00.$10,500.00Current price is: $10,500.00. ex GST
Delivery fees may apply. Contact us for full pricing.
Original price was: $11,990.00.$10,500.00Current price is: $10,500.00. ex GST
Delivery fees may apply. Contact us for full pricing.
Specifications
Standard Features
- Aluminum Platform Basket
- Polyurethane Non-mark tires
- Leverage Ro-Ro device
- Lifting ears
- Two controls of the platform and base
- Lower Beeper warning
- Tilt Device (only for AMP40)
- Lowering switch
- Outrigger Storage Frame
Option Features
- Door Type Standard/narrow/wide Platform
- Fiber Glass Platform
- Goods collection platform
- Narrow/Rough Ground Chassis
- Stairs Bracket
- DC Power
- Tool Box
- Platform Positioning Laser light
- Fluorescent Tubes Box
- Working Flashing Beacon
- Top Limit Protection Auto-stop device
- Maintenance-free battery
- Equipment Protection cover
| Aerial Work Platform Single Mast AMP | ||||
| Model | AMP20 | AMP26 | AMP32 | AMP40 |
| Working height Max. H1 | 8.0m | 10.0m | 12.0m | 14.0m |
| Platform height Max. H2 | 6.0m | 8.0m | 10.0m | 12.0m |
| Lift capacity | 159kg | 120kg | ||
| Basket Size B*C | 0.69m*0.68m | |||
| Stowed Size E*F*D | 1.27*0.74*1.97m | 1.36*0.78*1.97m | 1.42*0.78*1.97m | 1.46*0.78*2.76m |
| Height, tilted back M | —— | —— | —— | 1.98m |
| Length, tilted back J | —— | —— | —— | 2.87m |
| Outrigger footprint I*K | 1.77*1.49m | 1.99*1.72m | 2.27*1.98m | |
| Wall access front/side H/G | 0.18/0.45m | 0.18/0.45m | 0.23/0.55m | 0.42/0.65m |
| Power source AC/DC | 220V/110V/12V | 220V/110V/12V | 220V/110V/12V | 220V/110V/12V |
| Weights AC/DC | 355kg/405kg | 400kg/440kg | 427kg/477kg | 548kg/595kg |
| Standard Features: |
| ●Aluminum Platform Basket |
| ●Polyurethane Non-mark tires |
| ●Leverage Ro-Ro device |
| ●Lifting ears |
| ●Two controls: Platform Control and Ground Control |
| ●Lower Beeper warning |
| ●Tilt Device (only for AMP40) |
| ●Emergercy Lower Down |
| ●Outrigger Storage Frame |
| ● Maintenance-free battery |
*Prices are a guide and may vary at the time of order. Please contact us for a formal quotation
*Excludes GST
