Specifications

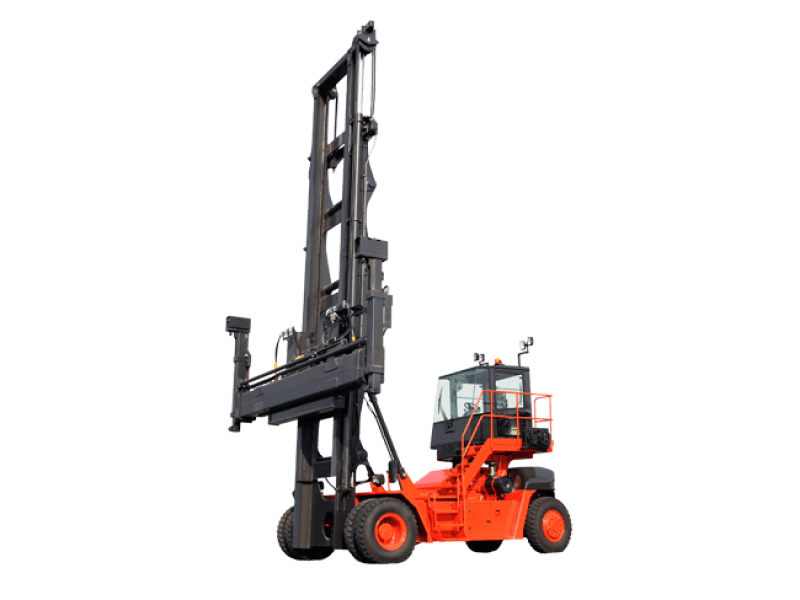

Heli has leveraged all of the best worldwide components to bring innovation and a new standard in container stacking.
Key Features:
- Designed to stack empty containers up to 19 meters high
- Air-conditioned cabin as standard
- Full cab suspension & vibration proof to increase operator comfort
- Cummins engine
- Parker hydraulics
- CAN-bus controllers
- Kessler drive axle
- ZF transmission
| Dimensions and performance | Model | Units | CPCD180EC5-CZ | CPCD180EC6-CZ |
| Lifting capacity | kg | 8000 | ||
| Stacking height | 5×9’6”/ 5×8’6” | 6×8’6” | ||
| Load center | mm | 1220 | ||
| Mast tilt (backward/forward) | deg | 3/3 | ||
| Spreader sideshift | mm | ±300 | ||
| Max lifting height in twistlocks | mm | 13700/15220 | 16300 | |
| Min lifting height in twistlocks | mm | 2255 | ||
| Width (spreader/tire) | mm | 6065/3500 | ||
| Overall length | mm | 6000 | ||
| Lifting speed(at rated load) | mm | 420 | ||
