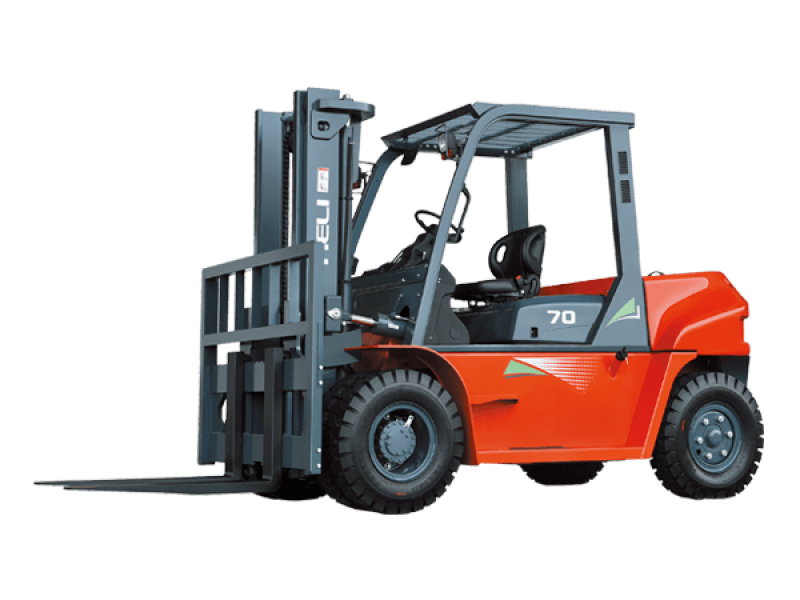

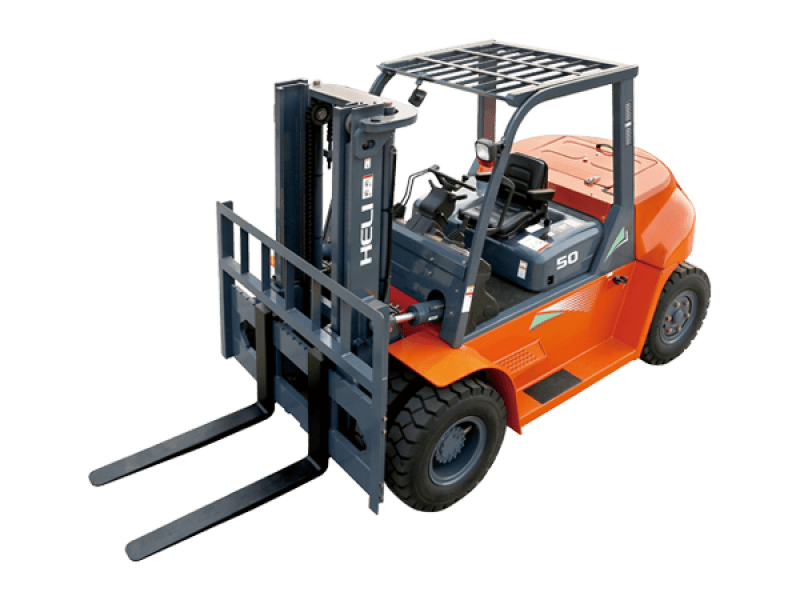

Heli G series 5000kg to 7000kg forklift range with LPG engine
Delivery fees may apply. Contact us for full pricing.
Specifications
Model available as 5000kg, 6000kg or 7000kg capacity @ 600mm load centre
Specifications:
| Model | unit | CPCD50 | CPCD60 | CPCD70 | CPQ(Y)D50 | CPQ(Y)D60 | CPQ(Y)D70 | |
| Power Unit | Diesel | Diesel | Diesel | Gasoline | Gasoline | Gasoline | ||
| Rated Capacity | kg | 5000 | 6000 | 7000 | 5000 | 6000 | 7000 | |
| Load Center | mm | 600 | 600 | 600 | 600 | 600 | 600 | |
| Mast height extended(with backrest) | mm | 4400 | 4400 | 4400 | 4400 | 4400 | 4400 | |
| Standard Lift Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Overhead guard height | mm | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 | |
| Overall length(without forks) | mm | 3490 | 3570 | 3620 | 3490 | 3570 | 3620 | |
| Truck body width | mm | 2045 | 2045 | 2045 | 2045 | 2045 | 2045 | |
