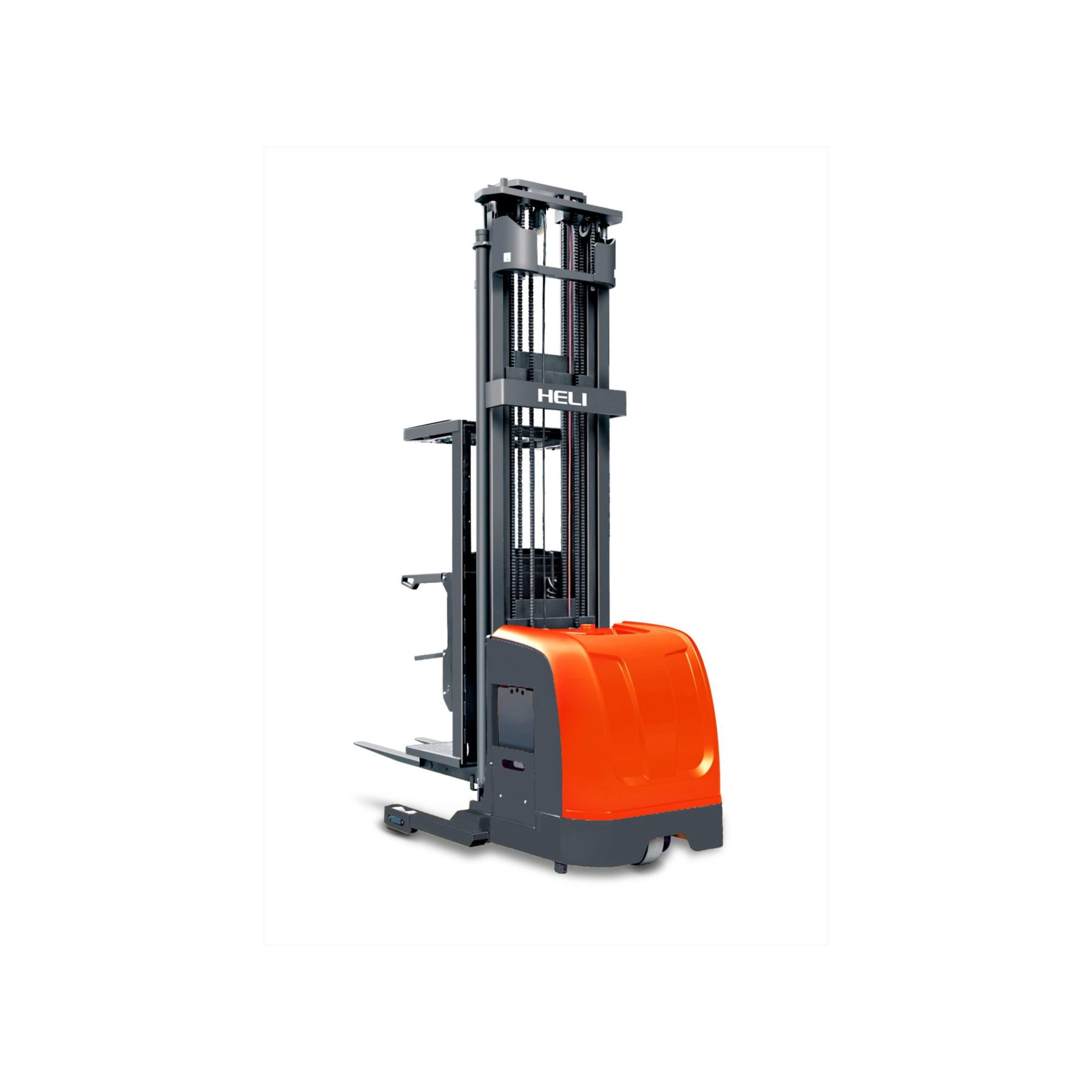

Heli ops15 electric high level order picker (1500kg load capacity)
Delivery fees may apply. Contact us for full pricing.
Specifications
Key Features:
- Low gravity centre provides good stability;
- Electric powered steering offers easy, flexible, high efficient and quiet operation;
- The truck adopts integrated control handle and steering handle mechanisms and the travelling, lifting and lowering functions can be achieved through control handles;
- The oil cylinder will automatically decelerate when it’s 500mm away from the ground to prevent impact and reduce noise;
- The mast and the frame are dividable and exchangeable;
- Low voltage protection setting prolongs the battery use time;
- AC motor eliminates replacement of the carbon brush, providing good ramp starting performance and regenerative breaking functions;
- Sideway battery is convenient for exchanging and maintaining;
- The mast channel steel is the special type imported from Germany;
- High performance multi-function instrument has LED light and display;
- The truck can automatically decelerate when quick turning;
- Height display and automatic deceleration at high lifting levels are adopted on the truck;
- Stepless speed control system is safe and quiet.
Specifications:
| Make | Heli |
| Model | OPS15 |
| Mast Type | 3-stage mast |
| Load Capacity | 1500kg |
| Load Centre Distance | 600mm |
| Lift Height | 5000/7000/9000 |
| Height, Mast Extended | 7230/9230/11230 |
| Height, Mast Lowered | 2410/3080/3750 |
| Height of Platform | 230mm |
| Height between Lowered Fork & Ground | 80mm |
| Fork Size | 45/100/1220 |
| Overall Length | 3200mm |
| Overall Width | 1100/1352mm |
| Width Across Forks | 530/715mm |
| Height of Overhead Guard | 2290mm |
| Turning Radius | 1800mm |
| Travelling Speed | 7.7/8 Km/h |
| Lifting Speed | 0~0.15/0~0.28 |
| Lowering Speed | 0~0.28/0~0.30 |
| Controller | CURTIS |
| Brake | Electromagnetic |
| Total Weight | 3870kg |
