Short Reach Extendable Forklift Jib Attachment (2500kg)
Original price was: $1,850.00.$1,490.00Current price is: $1,490.00. ex GST
Delivery fees may apply. Contact us for full pricing.
Original price was: $1,850.00.$1,490.00Current price is: $1,490.00. ex GST
Delivery fees may apply. Contact us for full pricing.
Specifications

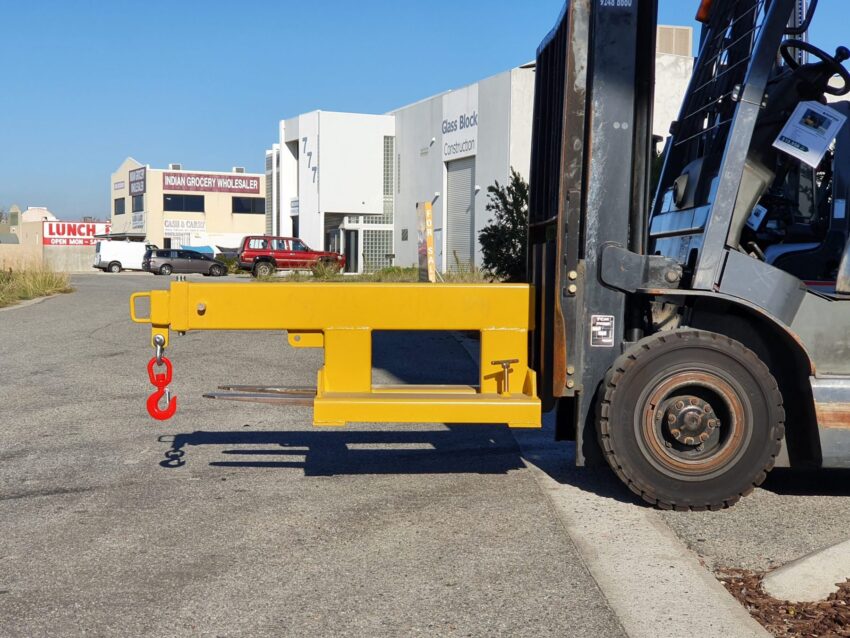

The YSFMJ2.5 is an affordable 2.5 tonne extendable, short reach forklift jib is designed for general lifting and maintenance within smaller, more confined spaces.

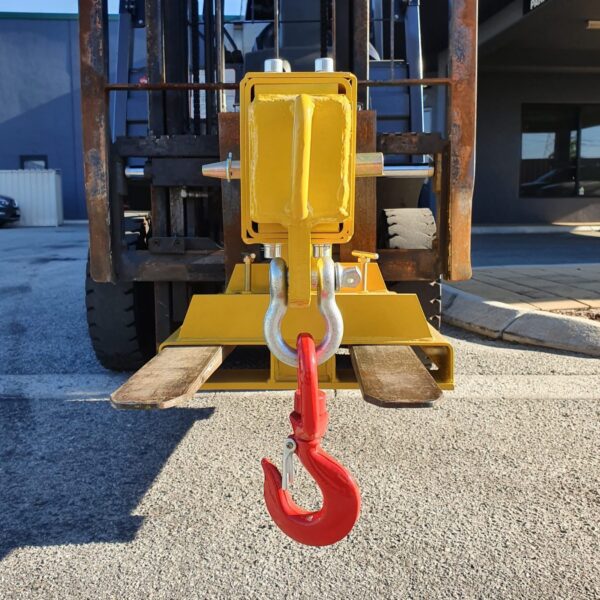

The Jib easily fits on your fork tynes and is secured by two heavy duty adjustable bolts and a chain to the fork carriage.
Specifications:
Load Capacity: 2500kg
Max Extended Length: 1960mm
Retracted Length: 1300mm
Weight: 100kg
Load Centre: 790mm
Fork Pocket Size: 185 x 65mm
Fork Pocket Centres: 275mm
Includes a Safety swivel hook and shackle

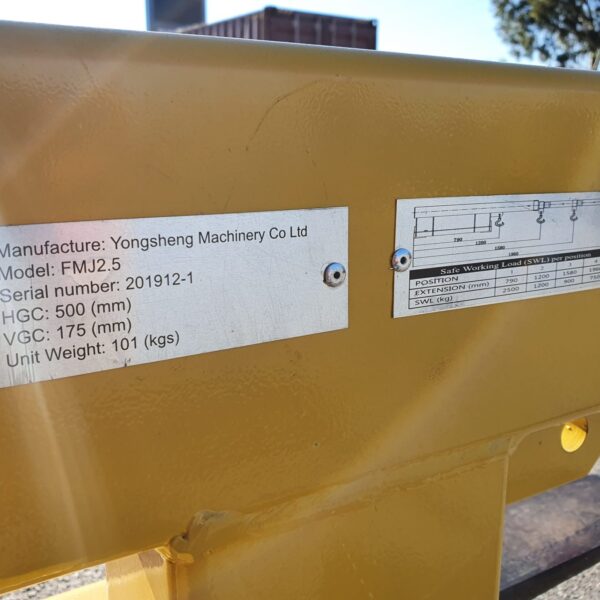

| Working Load Limit (WLL) per Position | ||||||||
| Position | 1 | 2 | 3 | 4 | ||||
| Extension (mm) | 790 | 1200 | 1580 | 1960 | ||||
| WLL (kg) | 2500 | 1200 | 900 | 750 | ||||
Frequently Asked Questions
What makes this a short reach jib?
This jib has a compact retracted length of 1300mm and extends to a maximum of 1960mm, making it suited to confined spaces where a longer jib would be difficult to manoeuvre.
Does the load capacity change with extension length?
Yes. The working load limit decreases as the jib is extended, from 2500kg at the shortest 790mm position down to 750kg at the fully extended 1960mm position. Always check the rated capacity for your chosen extension before lifting.
