Angled Extendable Forklift Jib Attachment (4700kg)
Original price was: $2,400.00.$1,925.00Current price is: $1,925.00. ex GST
Delivery fees may apply. Contact us for full pricing.
Original price was: $2,400.00.$1,925.00Current price is: $1,925.00. ex GST
Delivery fees may apply. Contact us for full pricing.
Specifications

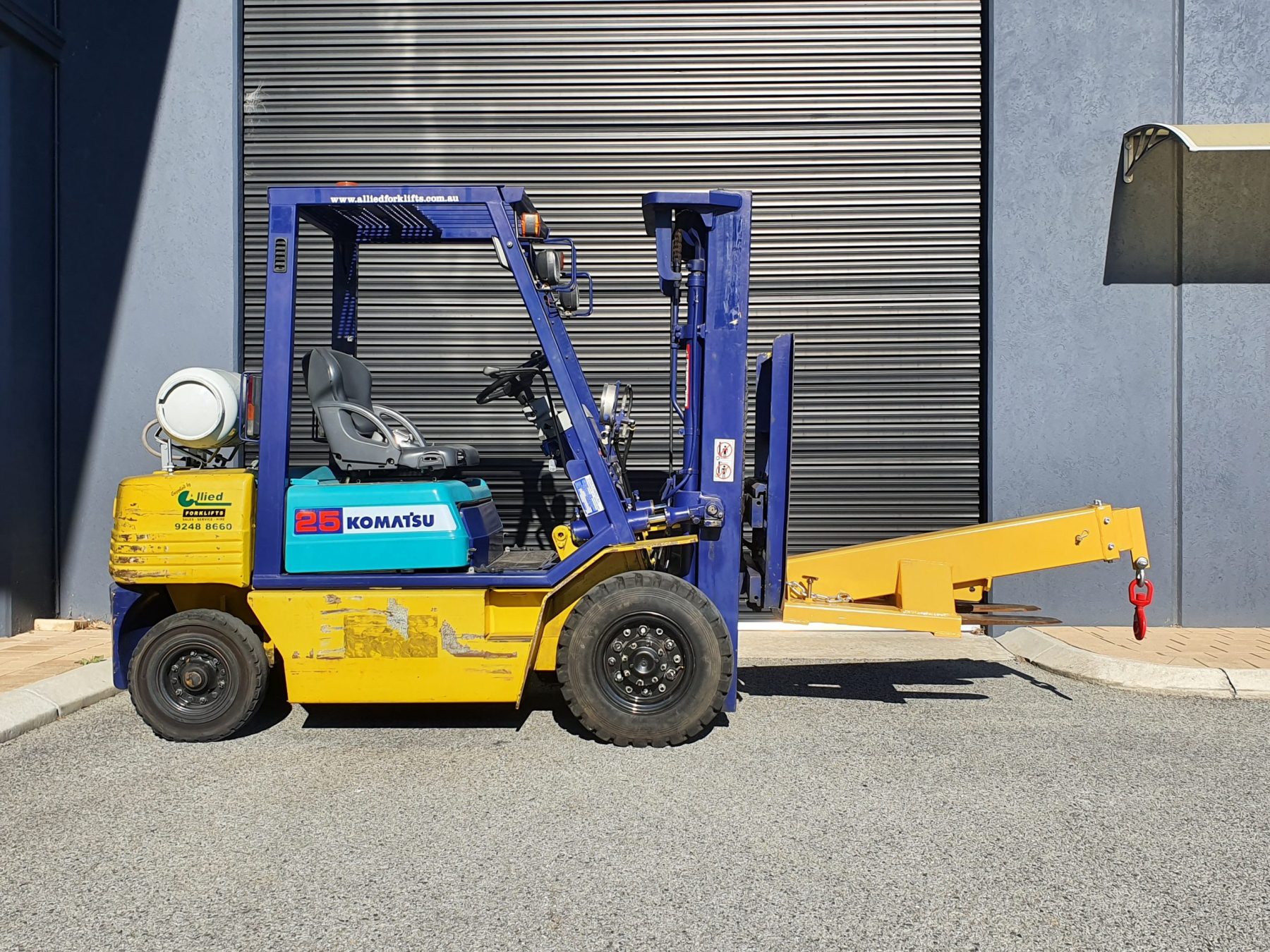

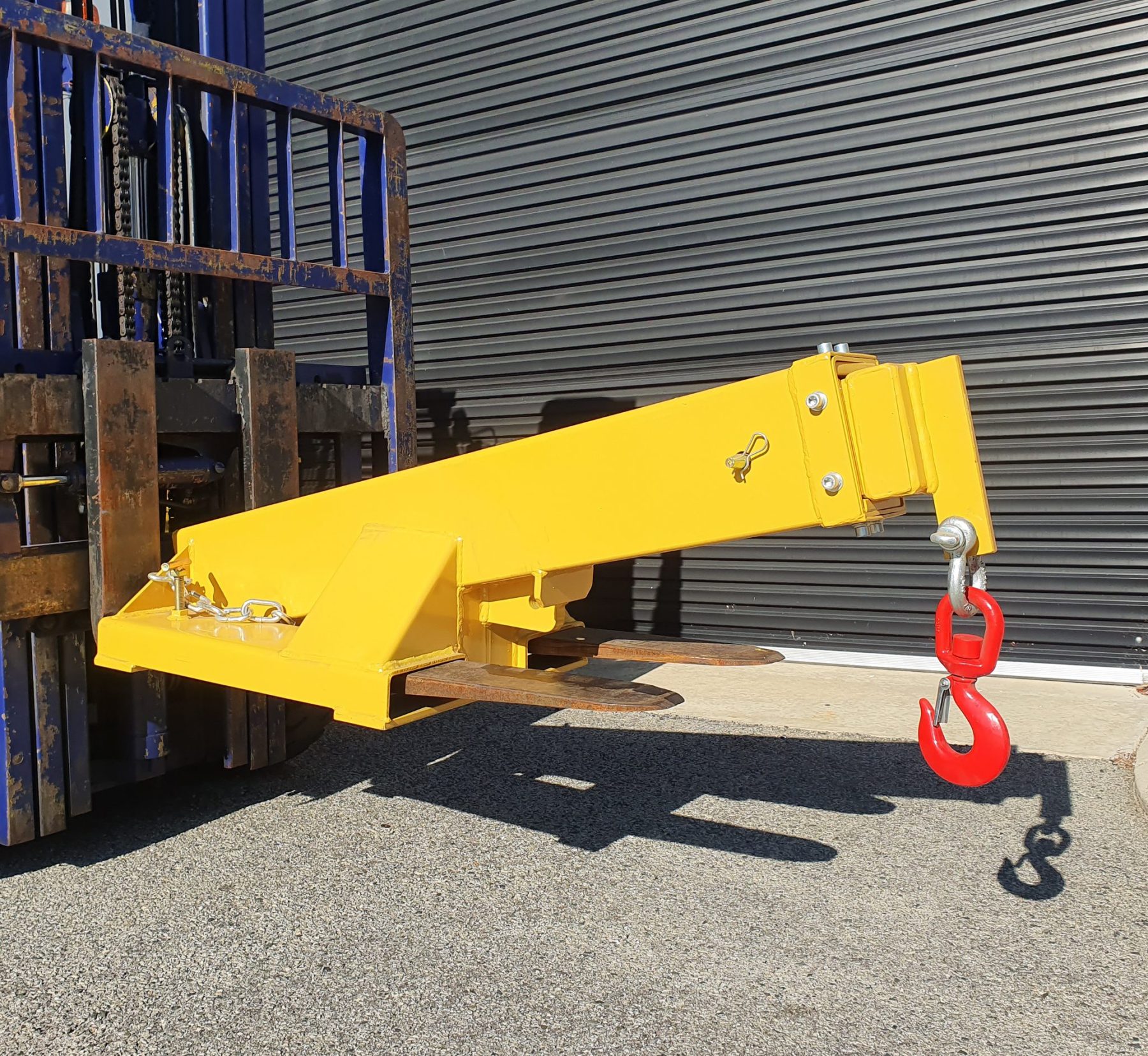

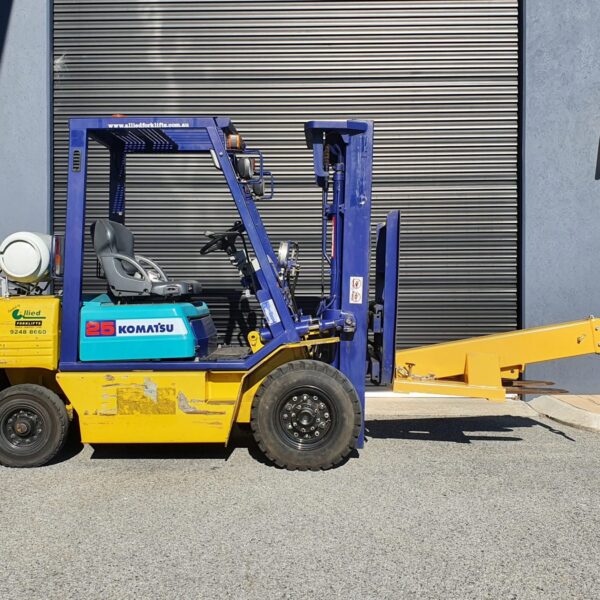

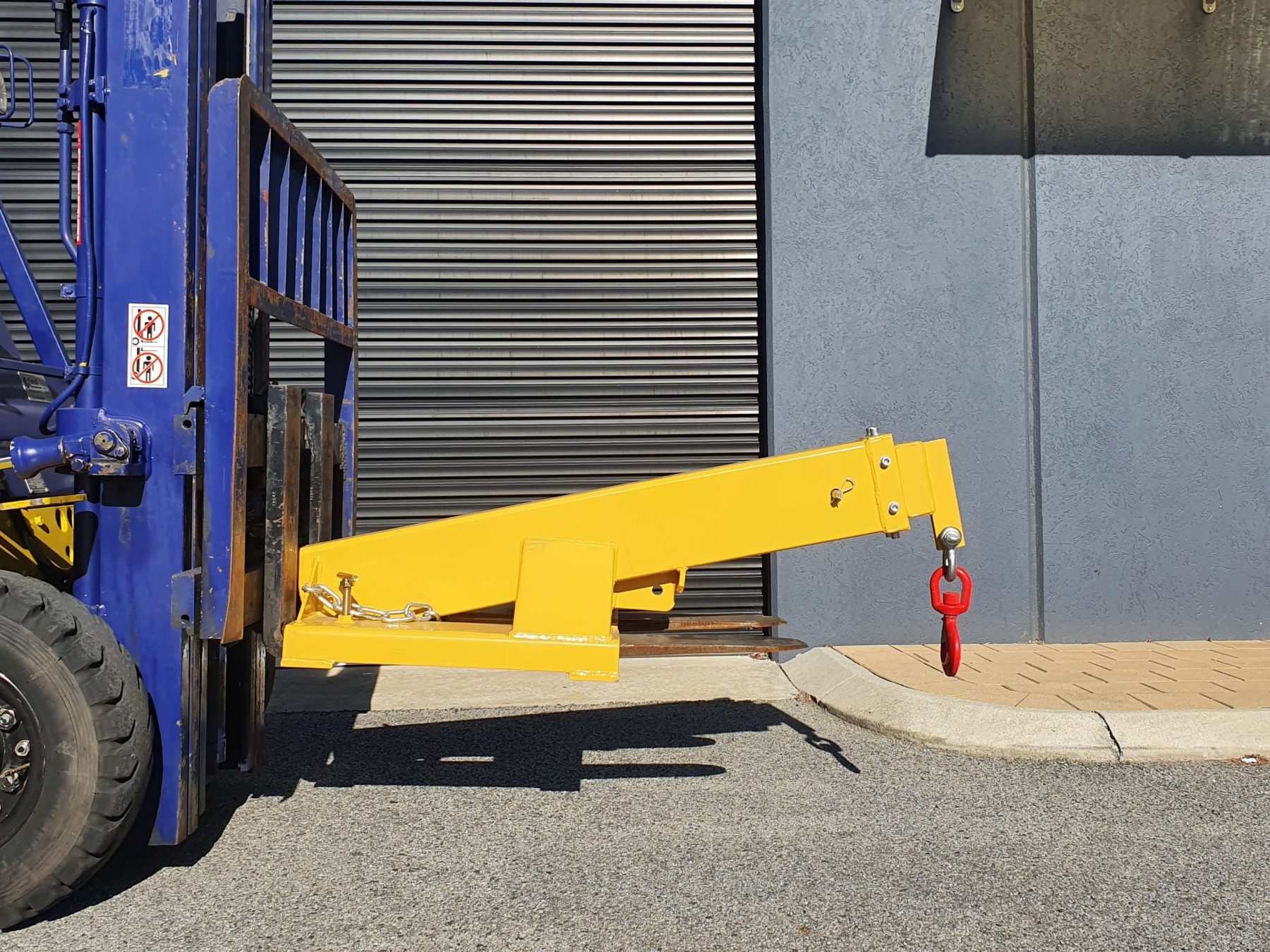

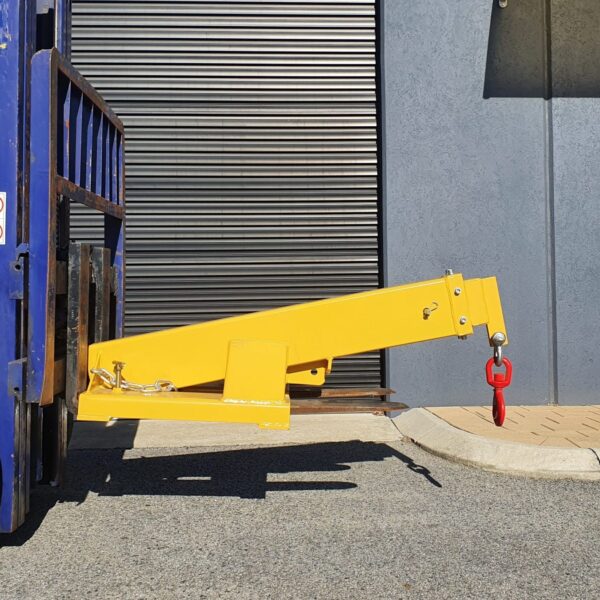

The YSFMJ4.7 is an affordable 4.7 tonne extendable, angled forklift jib is designed for general lifting and maintenance within smaller, more confined spaces. Manufactured with an angled boom to compensate for the lost length of the hook and sling.

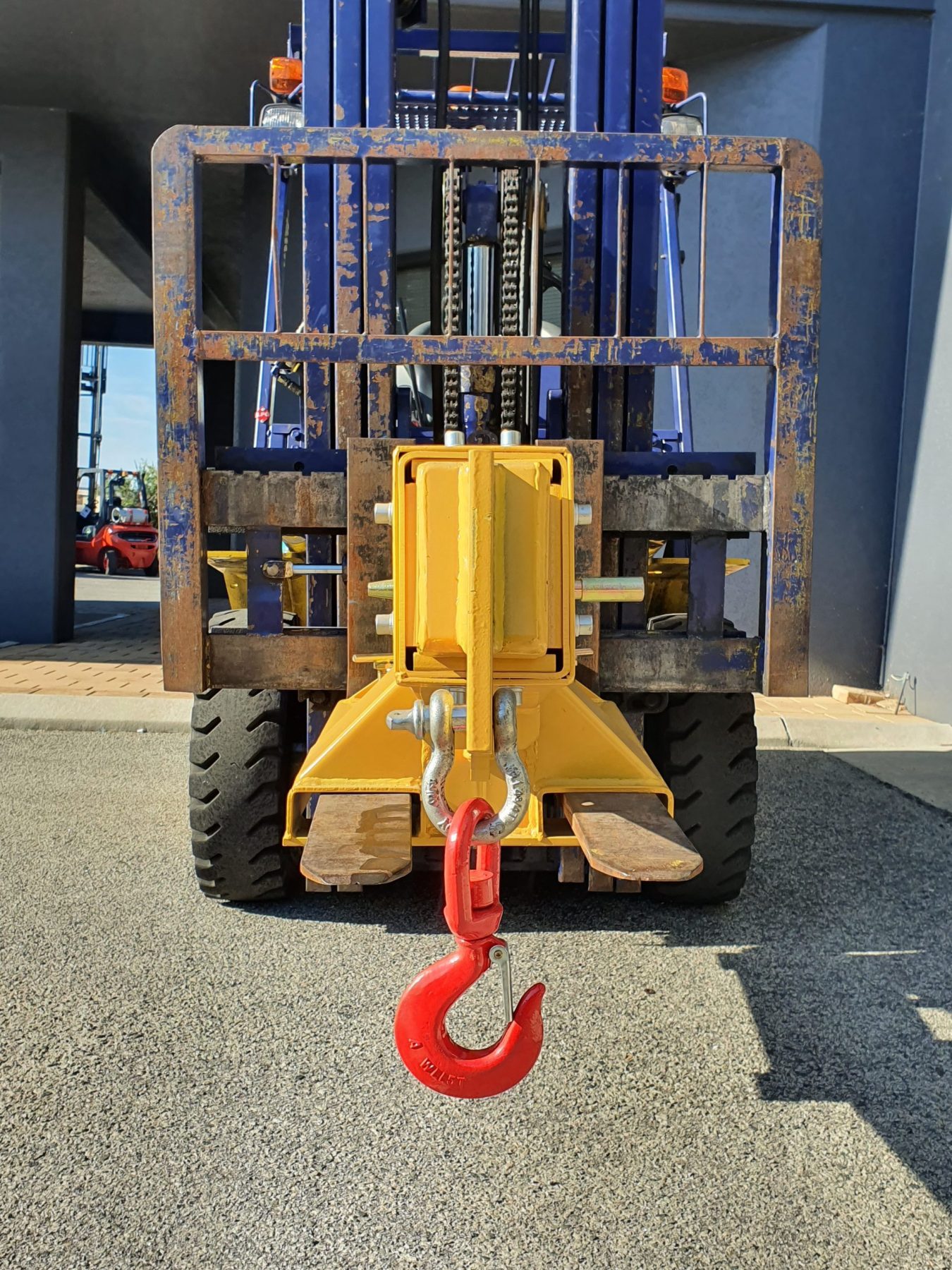

The Jib easily fits on your fork tynes and is secured by two heavy duty adjustable bolts and a chain to the fork carriage.
Specifications:
Load Capacity: 4700kg
Max Extended Length: 2365mm
Retracted Length: 1500mm
Weight: 140kg
Load Centre: 790mm
Fork Pocket Size: 185 x 65mm
Fork Pocket Centres: 350mm
Includes a Safety swivel hook and shackle

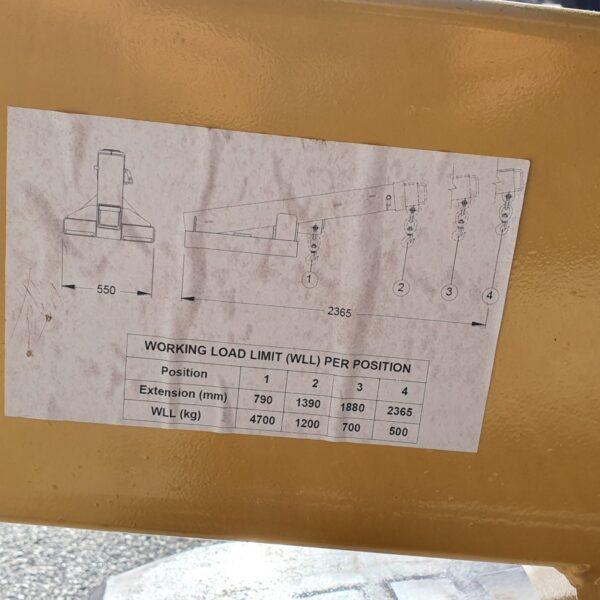

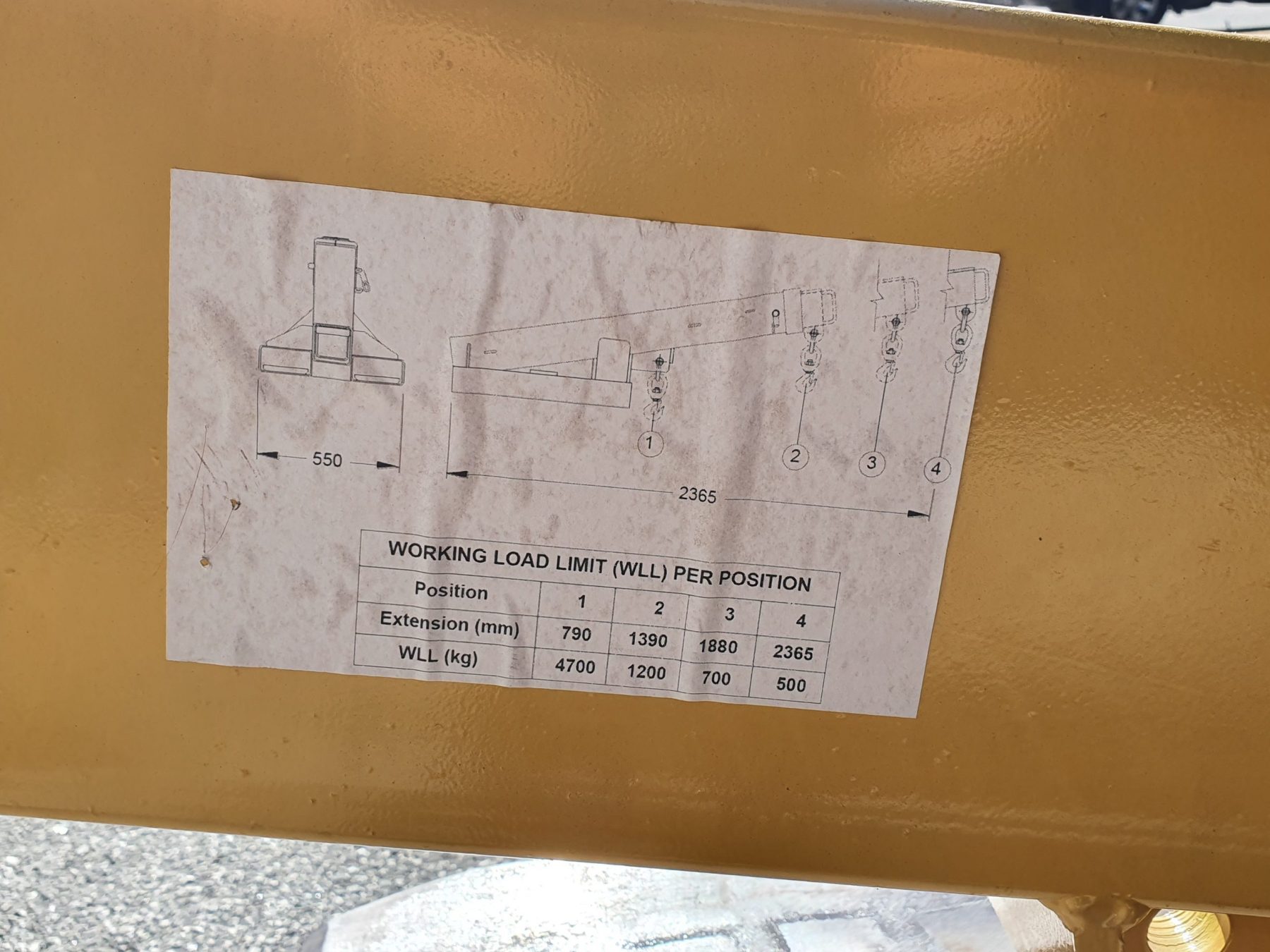

| Working Load Limit (WLL) per Position | ||||||||
| Position | 1 | 2 | 3 | 4 | ||||
| Extension (mm) | 790 | 1390 | 1880 | 2365 | ||||
| WLL (kg) | 4700 | 1200 | 700 | 500 | ||||
Frequently Asked Questions
What is the difference between this and a standard forklift jib?
This jib has an angled boom, which compensates for the length lost by the hook and sling, and four adjustable extension positions from 790mm to 2365mm, giving flexibility for confined space lifting that a fixed jib cannot offer.
Does the load capacity change with extension length?
Yes. The working load limit decreases as the jib is extended, from 4700kg at the shortest 790mm position down to 500kg at the fully extended 2365mm position. Always check the rated capacity for your chosen extension before lifting.
