Specifications

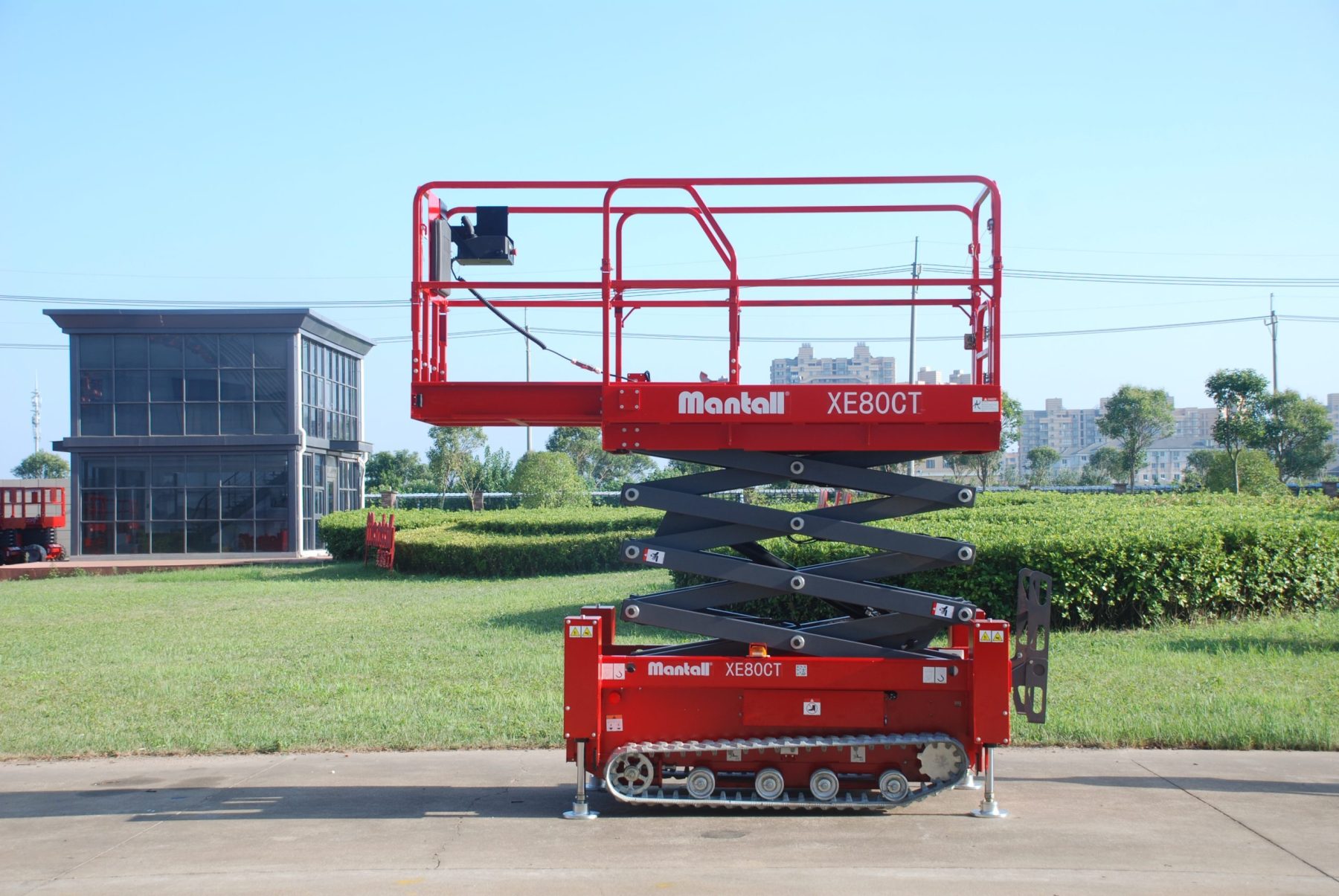

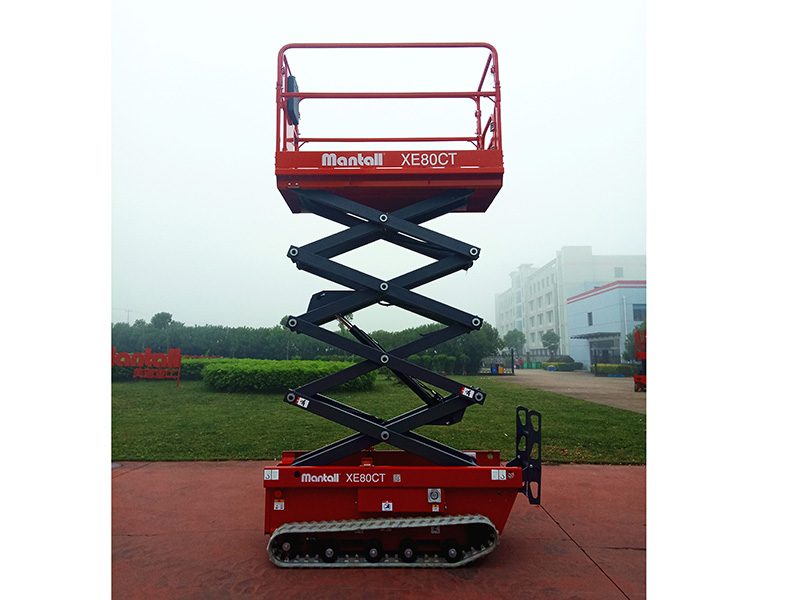

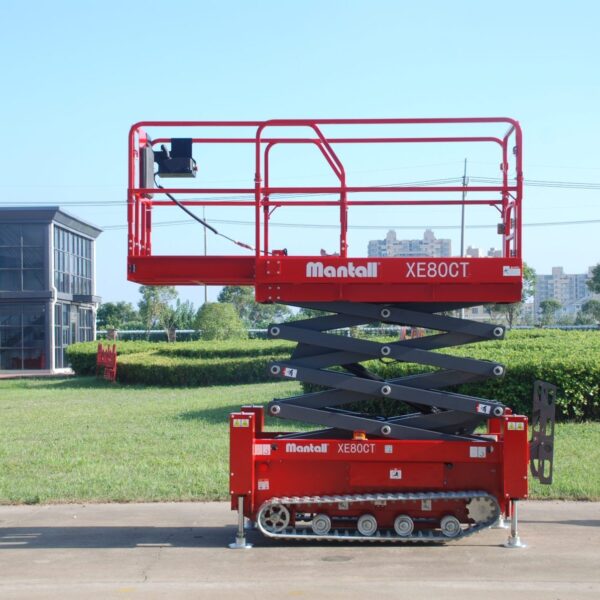

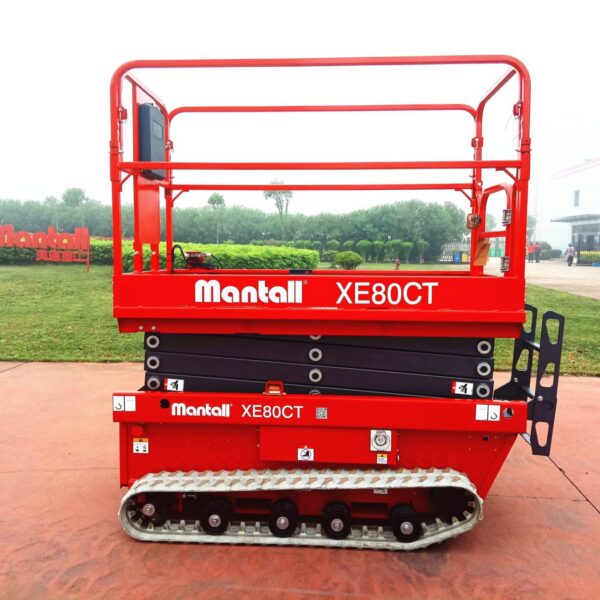

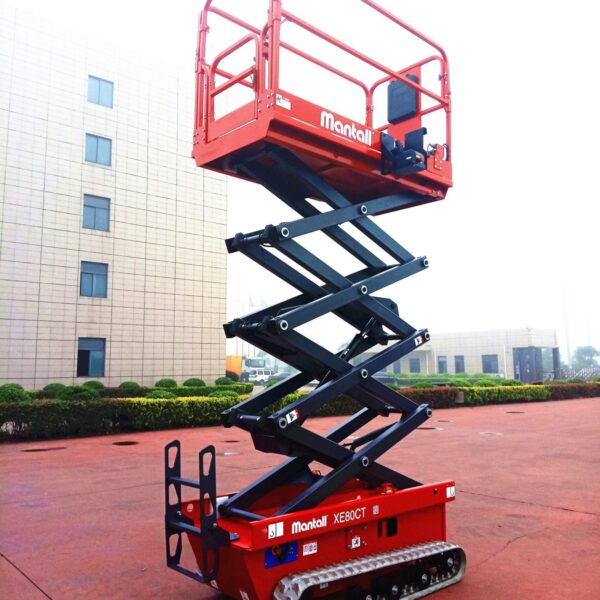

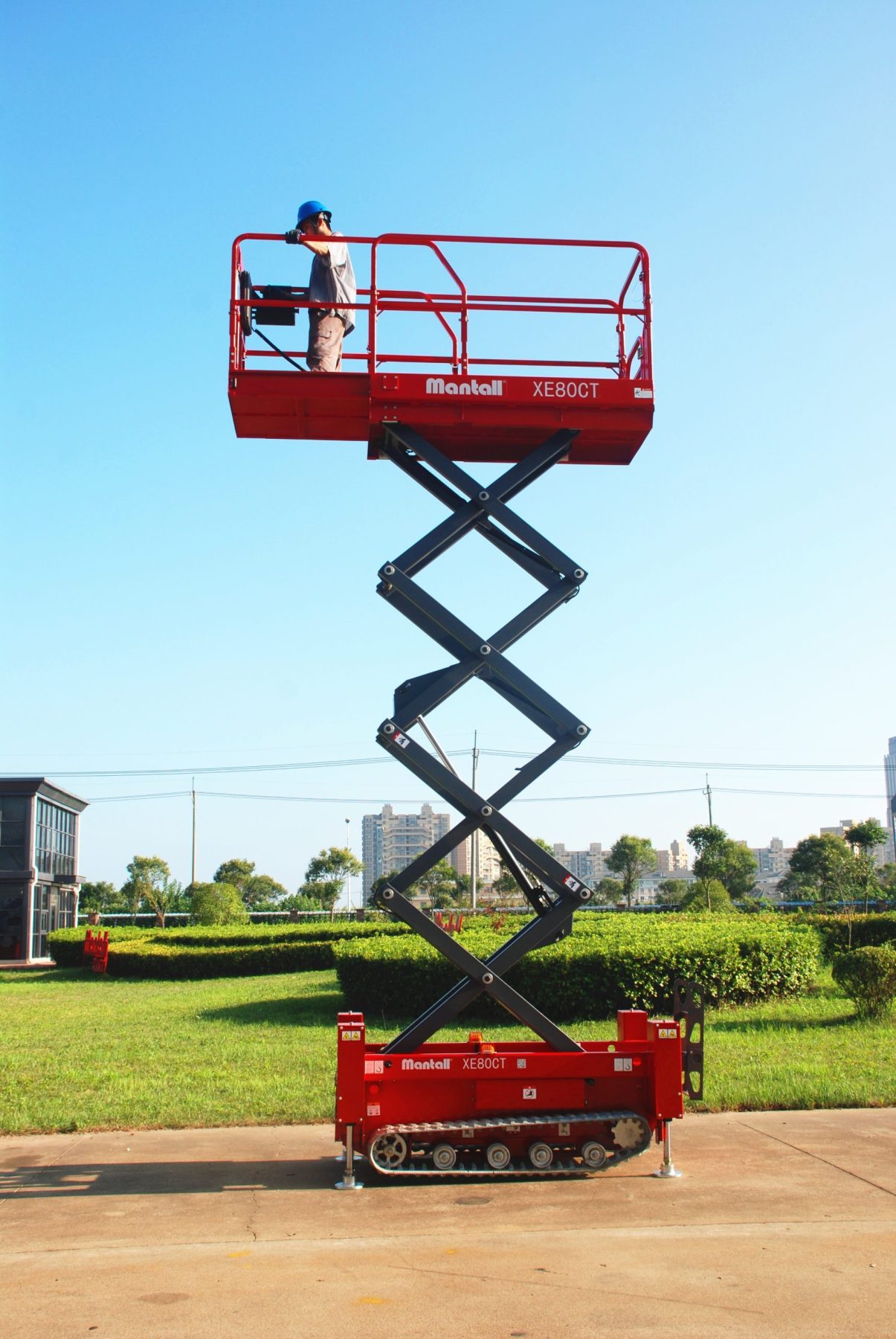

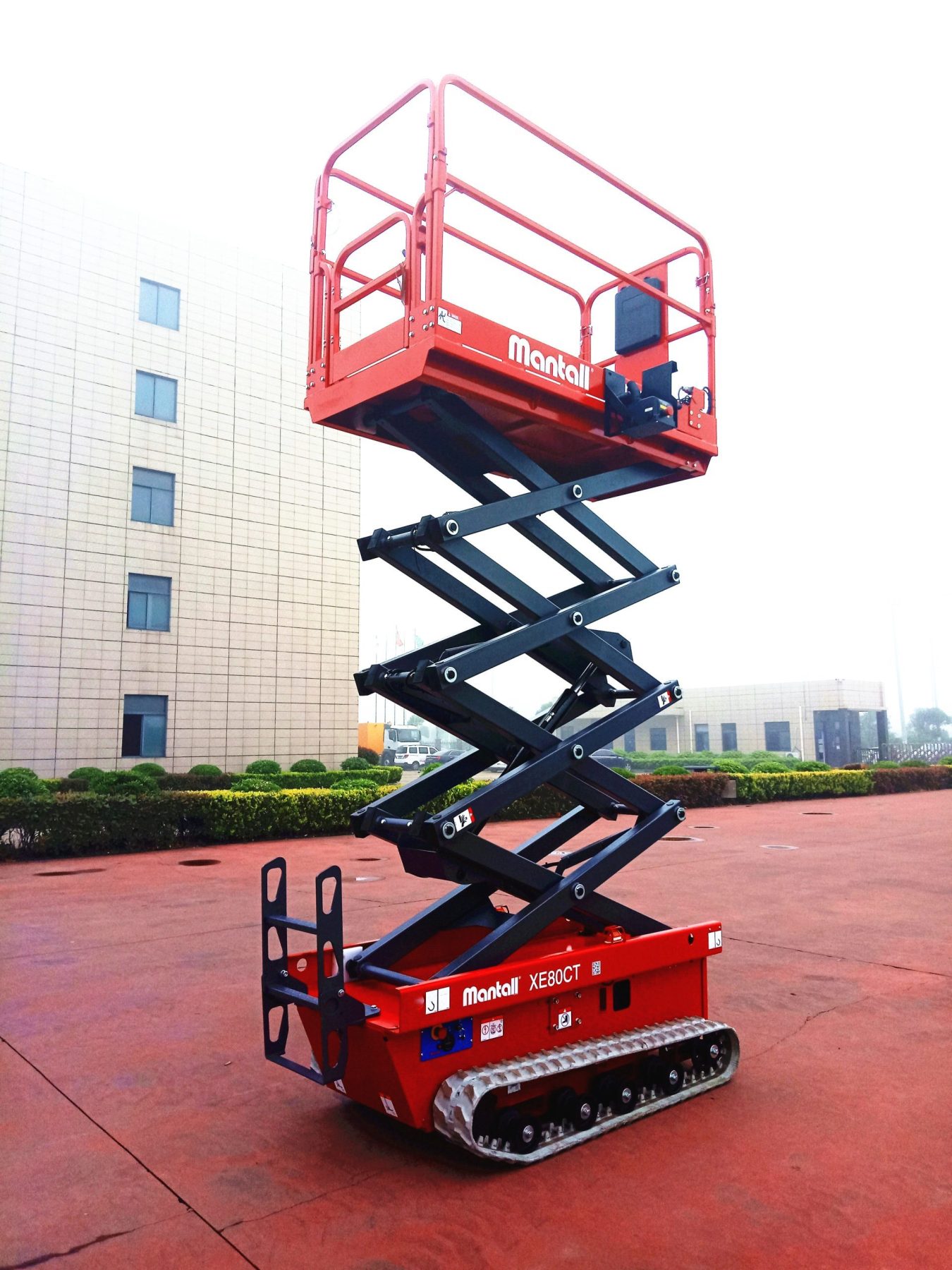

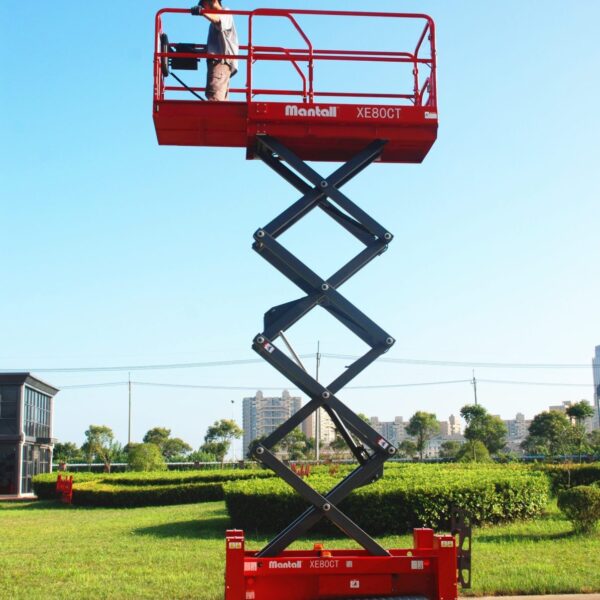

| Crawling Type Scissor Lift XE-CTseries | |||
| Models | XE60CT | XE80CT | |
| Max. Working height H1 | 6.8 m | 8 m | |
| Max. Platform height H2 | 4.8 m | 6 m | |
| Max. Outreach | 0.9 m | ||
| Lifting capacity | 230 kg | ||
| Lifting capacity on the extension | 115 kg | ||
| Platform size B*C*A | 1.84×0.9×1.1 m | ||
| Overall length and width E*F | 2.26×1.01 m | ||
| Height stowed D | 2.12 m | 2.22 m | |
| Height-guardrails folded | 1.75 m | 1.85 m | |
| Ground clearance(m) | 0.13 m | ||
| Raising time/Lowering time(s) | 24/22 s | 32/30 s | |
| Drive Speed, stowed | 1.7 Km/h | ||
| Drive Speed, raised | 0.7 Km/h | ||
| Gradeability | 40% | ||
| Tilt sensor- front to back | 3° | ||
| Tilt sensor- side to side | 2° | ||
| Drive Model | Electric Drive | ||
| Hydraulic tank capacity | 7 L | ||
| Crawler size | Y200*72 -49 Section | Y200*72 -49 Section | |
| Max. platform occupancy | 2 pers | ||
| Power source | 24V/225Ah | ||
| Weight | 1140 kg | 1235 kg | |
| Standard Features: |
| ●0.9X1.84Mplatform |
| ●Tilt alarm system |
| ●Fault diagnosis system |
| ●Explosion-proof of the oil tube |
| ●Automatic brake system |
| ●Safety maintenance support bar |
| ●200*72 hard rubber crawler |
| ●Hour meter |
| ●External charging indicator |
| ●AC socket in the platform |
| ●All motion alarm |
| ●Fault code display |
| ●Flash light |
| ●Buzzer |
| ●Proportional control |
| ●Emergency lower down |
| ●Manual brake release |
| ●Maintenance free battery |
| Optional Features: |
| ●Handheld fault diagnostic device |
| ●Overload sensor |
