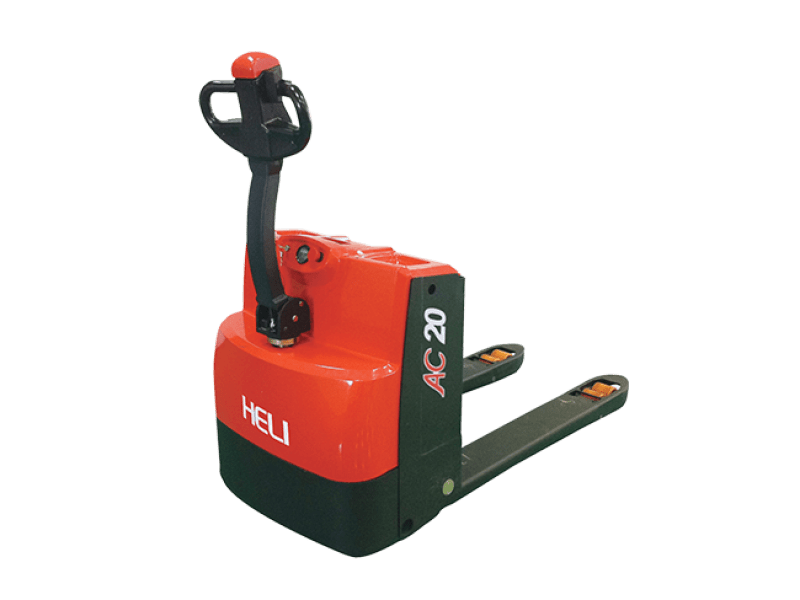

Heli 1.8-2t electric pedestrian pallet truck range
Delivery fees may apply. Contact us for full pricing.
Specifications
Key Highlights:
- Electronic power steering system
- AC driving system, no carbon brush, maintenance free
- USA CURTIS driving controller
- Electromagnetic, regenerative braking system
- Automatic lifting limit, safety and energy saving
Specifications:
| Model | Unit | CBD18/20-180 |
|---|---|---|
| Power Unit | Battery | |
| Wheels Type | PU | |
| Rated Capacity | kg | 1800/2000 |
| Load Center | mm | 600 |
| Max. Lifting Height | mm | 120 |
| Fork Lowered Height | mm | 85 |
| Overall Length | mm | 1650/1700 |
| Overall Width | mm | 725 |
| Overall Height (With Handle) | mm | 1380 |
| Drive Motor | KW | AC 0.95 |
| Lift Motor | KW | DC 1.2 |
| Controller | ZAPI | |
| Battery (Voltage/Capacity) | V/Ah | 24/210 |
