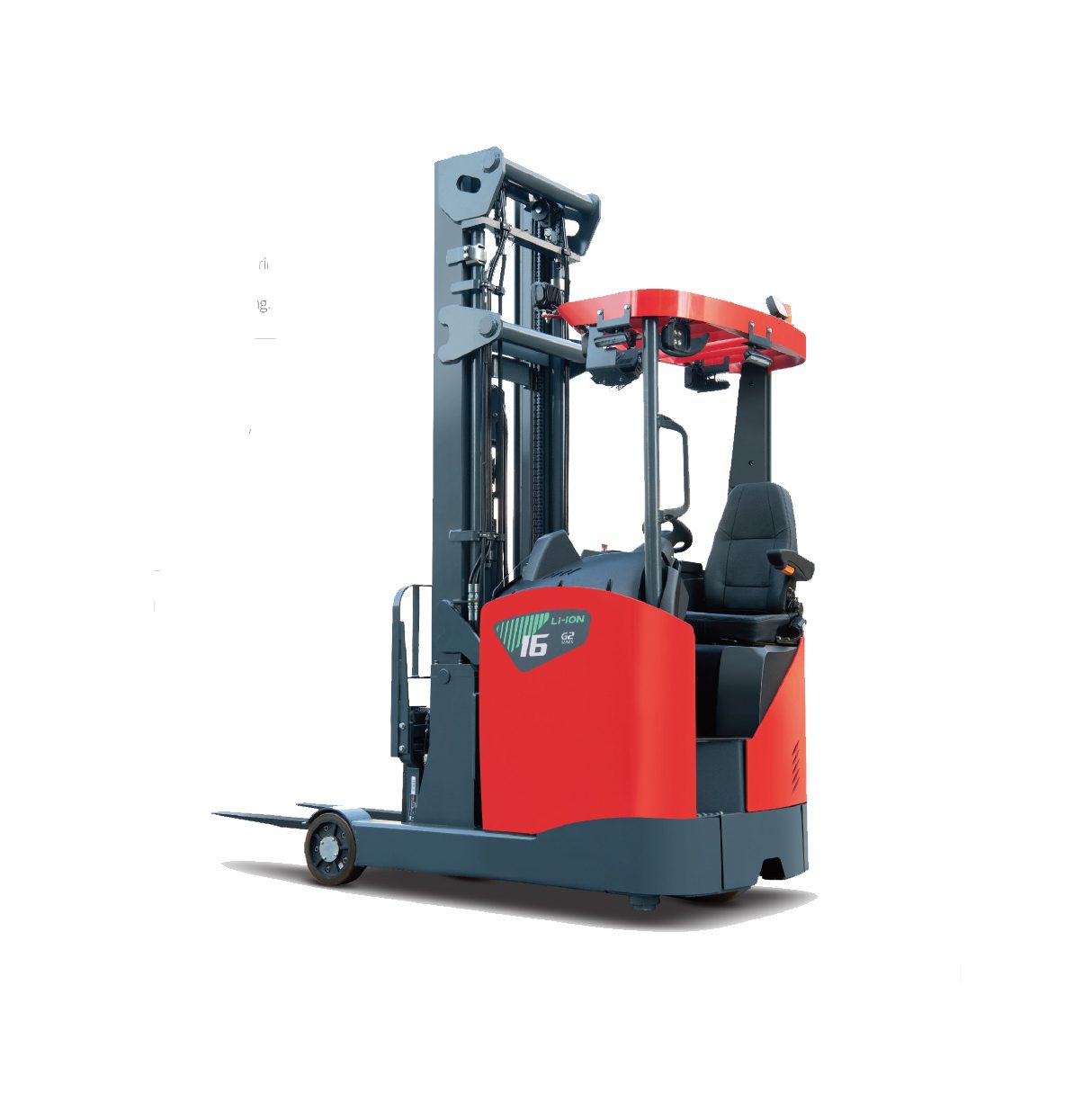

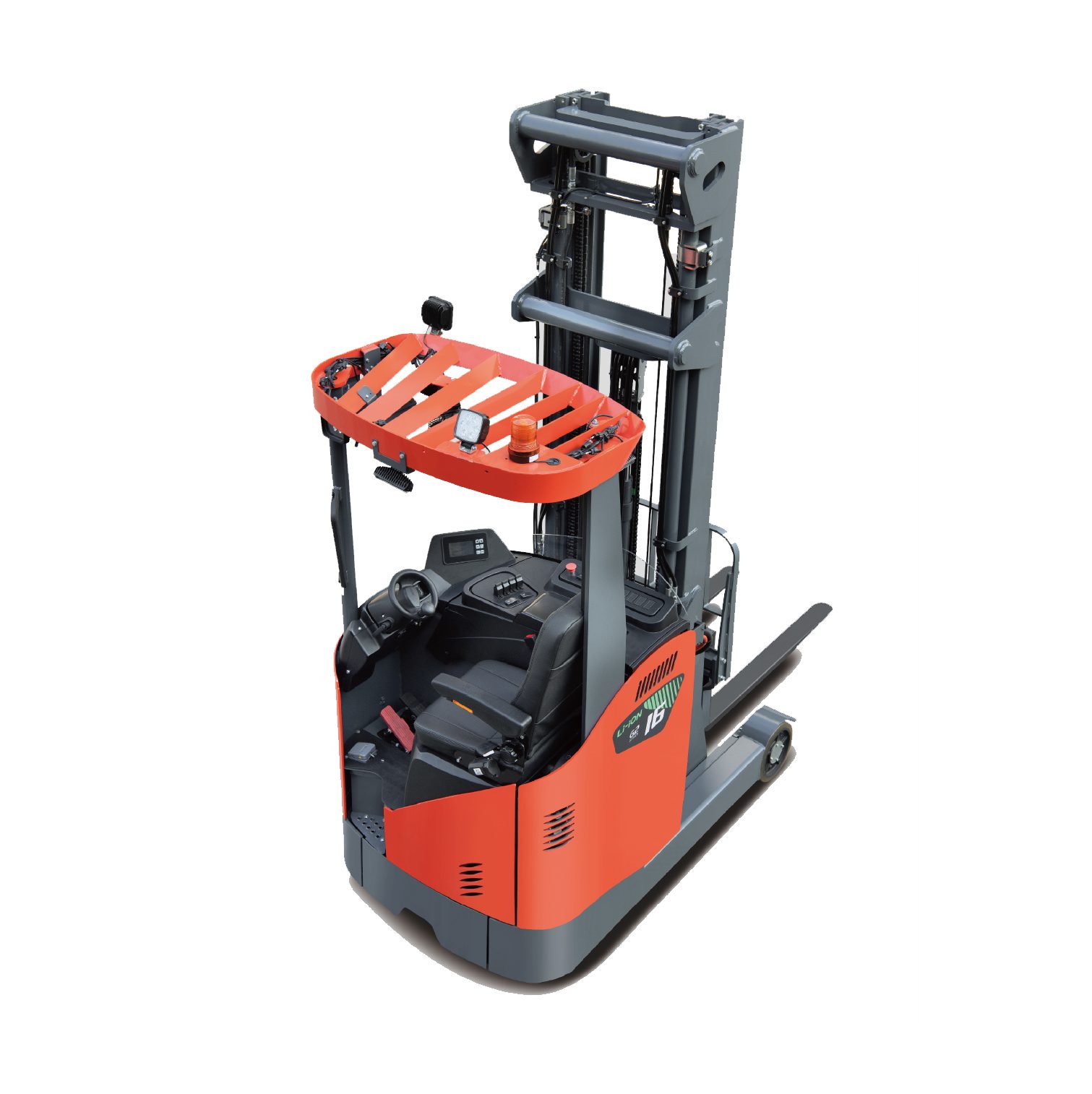

Heli G2 series 1.2-1.6t lithium-ion battery sit-down reach truck
Delivery fees may apply. Contact us for full pricing.
Specifications
HELI Lithium Power Advantages:
- Zero Emissions – Great for the environment
- Zero Battery Maintenance – No need to add water, no overcharging etc.
- Reduced Running Costs – No expensive diesel or gas and no more storing of fuel
- Increased ROI – The true cost of ownership is at least less than half of lead acid. High efficiency brings high cost performance.
- Improved Safety & Reliability – Passed over 273 tests* including safety, reliability and performance
- iBMS – Intelligent battery management system provides real-time monitoring on li-ion cells
- Long Service Life – Batteries last 3-4 times life to that of lead acid batteries
- Great Environmental Adaption – Lithium batteries maintain good performance when working between -25°C and 55°C
| Item | Sit-Down Lithium-ion Reach Truck (1.6-2T Capacity) | |||
| Series | G2 Series | |||
| Model designation | CQD12 | CQD14 | CQD16 | |
| Configuration number | GB2SLi | GB2SLi | GB2SLi | |
| Load capacity | kg | 1200 | 1400 | 1600 |
| Load center | mm | 600 | 600 | 600 |
| Dimensions | ||||
| Overhead guard height | mm | 2215 | 2215 | 2215 |
| Truck body width | mm | 1120 | 1120 | 1120 |
| Turning radius (in std battery compartment) | mm | 1625 | 1689 | 1689 |
| Wheels, chassis | ||||
| Tyre type | PU | PU | PU | |
| Weight | ||||
| Total approximate weight | kg | 2914 | 3298 | |
| Performance | ||||
| Travel speed, loaded/unloaded | km/s | 14/14 | ||
| Lifting speed loaded/unloaded | mm/s | 0.45/.07 | ||
| Battery weight | kg | 590 | 710 | |
| Battery voltage/rated capacity (5h) | V/ah | 80/150 | ||
| Drive motor – 60 min. rating | kw | 7 | ||
