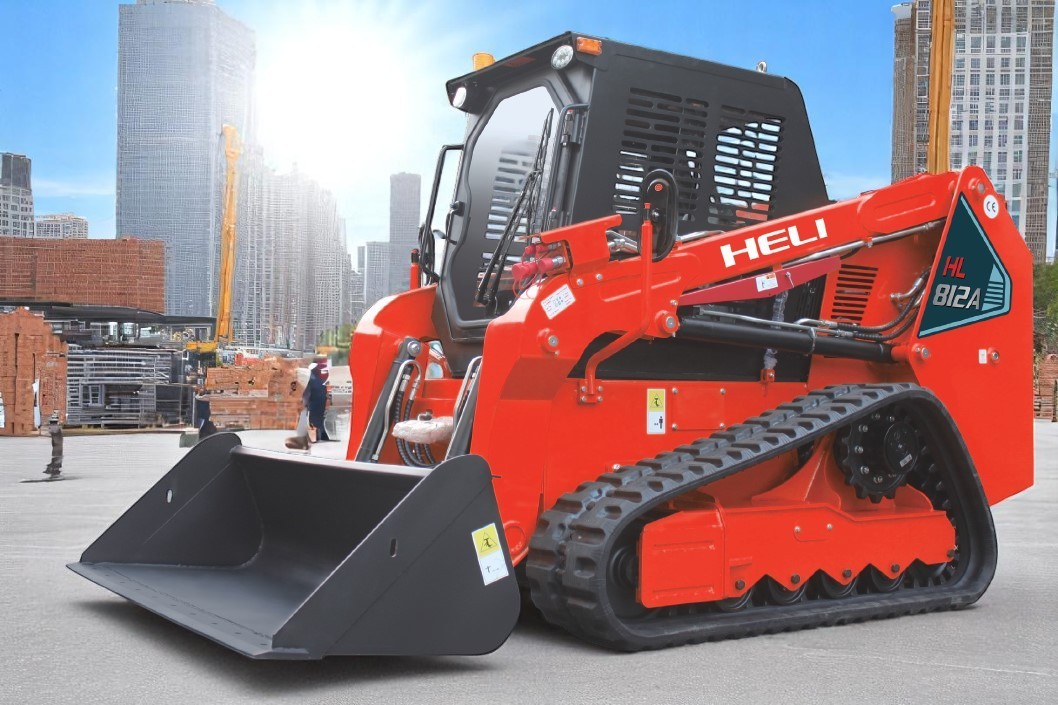

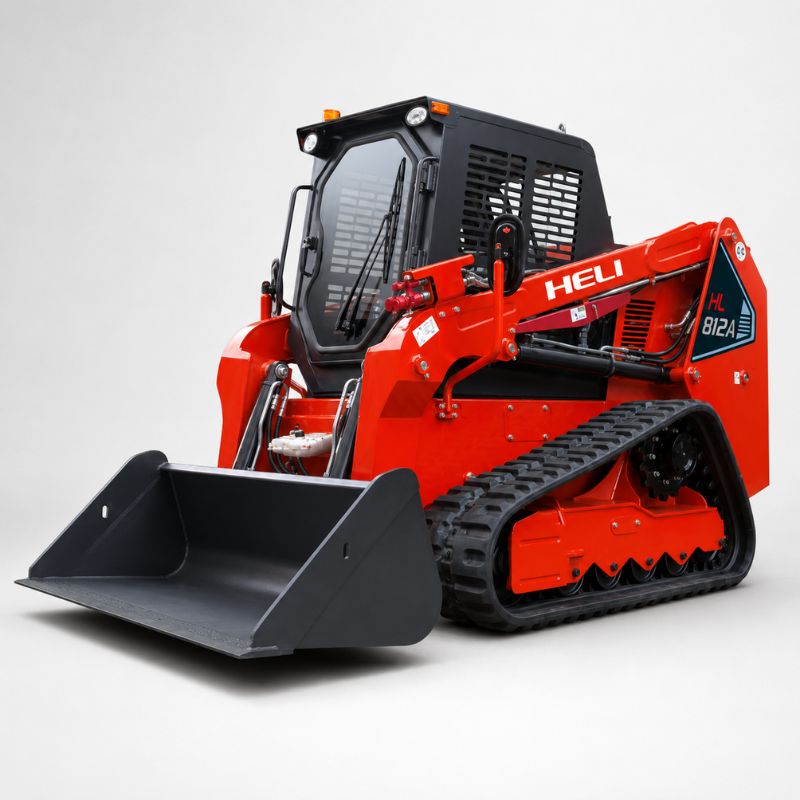

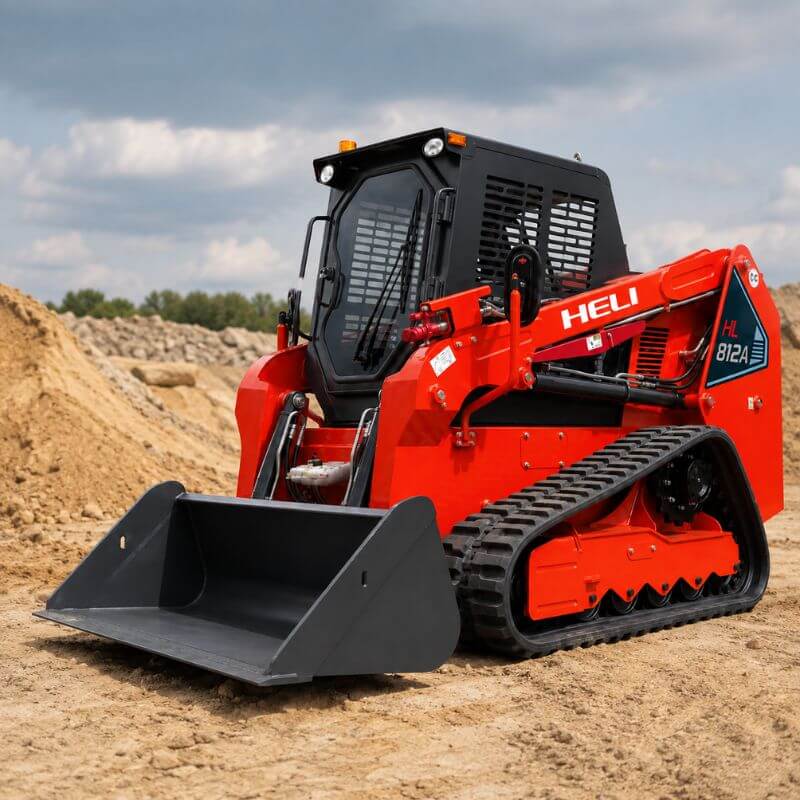

Heli HL812A Tracked Skid Steer Loader
$59,900.00 ex GST
Delivery fees may apply. Contact us for full pricing.
Specifications
The HELI HL812A is a tracked skid steer loader built for ground that beats wheeled machines. When a site turns to mud, sand or loose soil, the HL812A keeps working long after a wheeled skid steer would be stuck spinning.
With a 1,200kg operating load and a 65kW Quanchai engine, the HL812A sits in the same working class as popular tracked loaders from Bobcat and Caterpillar, sold and serviced locally by Allied Forklifts as the exclusive WA dealer for HELI.
Why Choose a Tracked Skid Steer
- Better traction. Holds grip on mud, sand and loose soil where a wheeled machine spins out.
- Lower ground pressure. Less surface damage on lawns, paved areas and soft sites.
- Higher breakout force. More usable force when digging, pushing or carrying.
- Lower centre of gravity. Reduces the risk of tipping on slopes and uneven ground.
- Fewer tyre costs. No blowouts on rocky or sharp debris sites.
HL812A Specifications
| Operating load | 1,200kg |
| Max loading | 3,428kg |
| Engine | Quanchai 4C6-88C33, China Stage III |
| Rated power | 65kW @ 2,200rpm |
| Max speed (1st/2nd gear) | 9 / 15 km/h |
| Bucket capacity | 0.55m³ |
| Hydraulic flow (standard / high flow) | 74 L/min / 140 L/min |
| Fuel tank capacity | 125L |
| Self weight (with bucket) | 4,400kg |
| Overall operating height | 4,114mm |
| Dumping height | 2,431mm |
| Ground clearance | 288mm |
| Track grounding length | 1,527mm |
| Track plate width | 400mm |
| Overall width | 1,880mm |
Attachments
The HL812A takes buckets, pallet forks, sweepers and 4 in 1 buckets built to the industry standard universal quick attach mount, the same fitting used on standard size Bobcat, Kubota, Case and Caterpillar machines.
Tracked or Wheeled
Choose the HL812A for sand, mud, wet ground or uneven sites. For hard, sealed surfaces, a wheeled model like the HL807 to HL809 is faster and cheaper to run. See the full range on our skid steer loaders page.
Local Sales, Parts & Service
Allied Forklifts is the exclusive WA dealer for HELI, sold, parted and serviced from our Malaga workshop since 1996. Download the full HL812A brochure for complete specifications.
