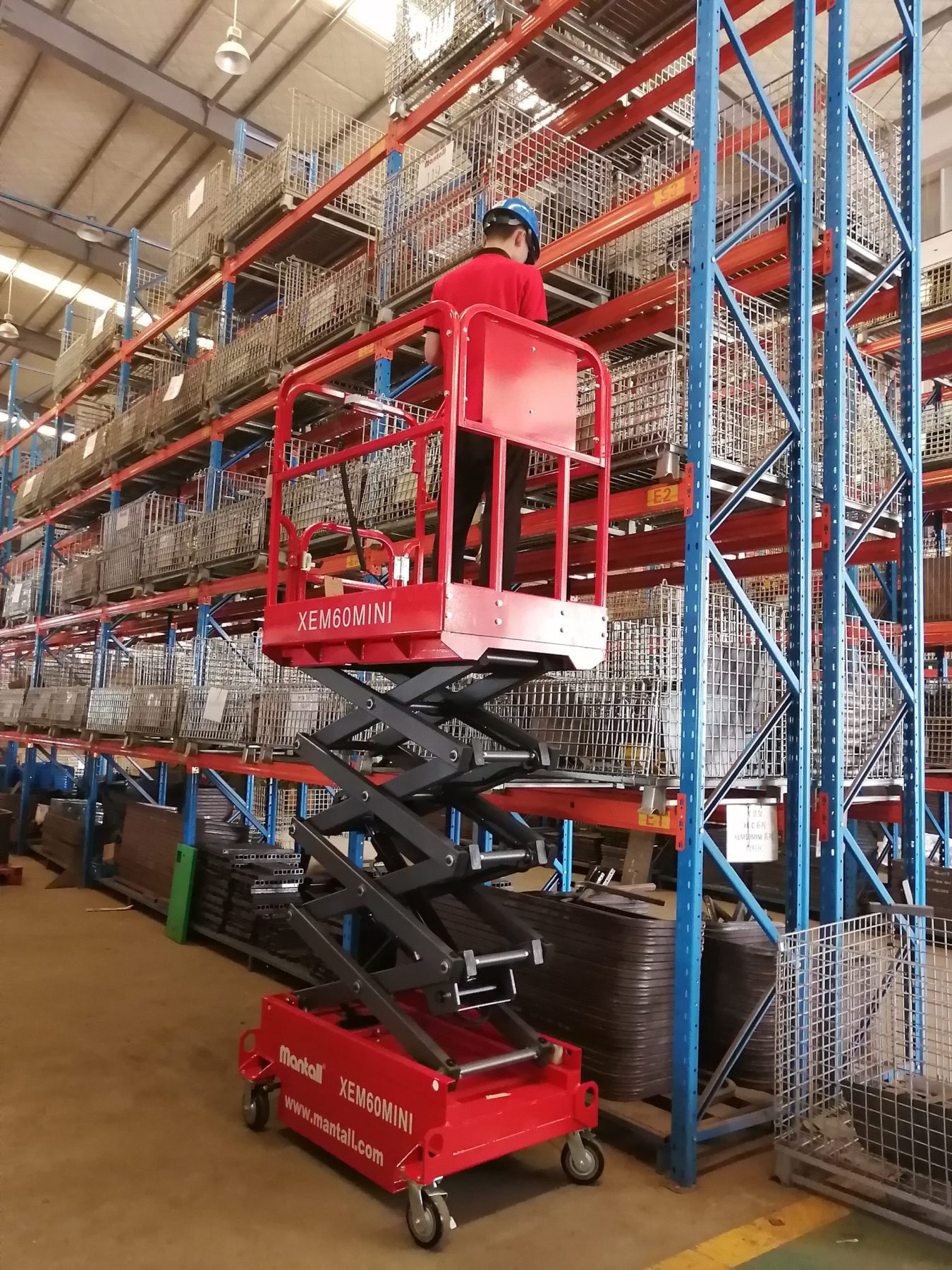

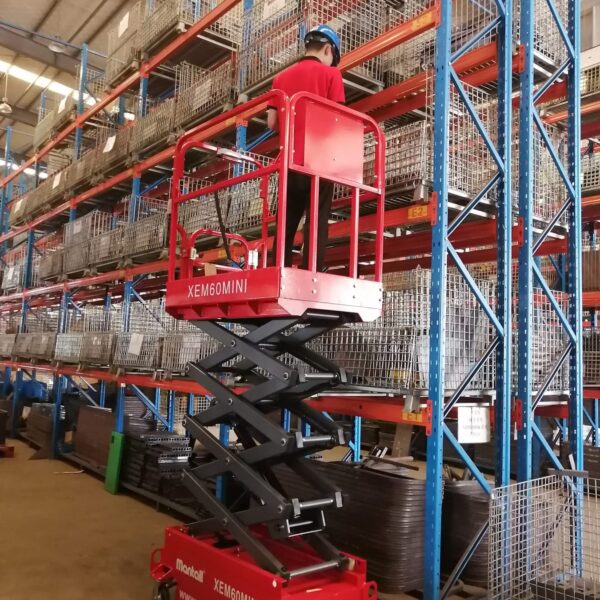

Mantall push-pull mobile battery electric scissor lift 5-6.4m work height | XEM-Mini
From $6,900.00 ex GST
Delivery fees may apply. Contact us for full pricing.
Specifications
IN STOCK
This new model Mantall scissor lift is designed and manufactured to suit clients who need to work at a height to 6000mm but do not need to pay high prices for a fully powered scissor lift. These units are less than half the price of a powered drive unit. When you consider you still need to lower the basket before driving a scissor lift, these manual push-pull units are still efficient. Ideal for electrical contractors!!
*Prices are a guide and may vary at the time of order. Please contact us for a formal quotation
*Excludes GST
XEM-50/60 MINI
XE50/60-MINI/ED PLUS

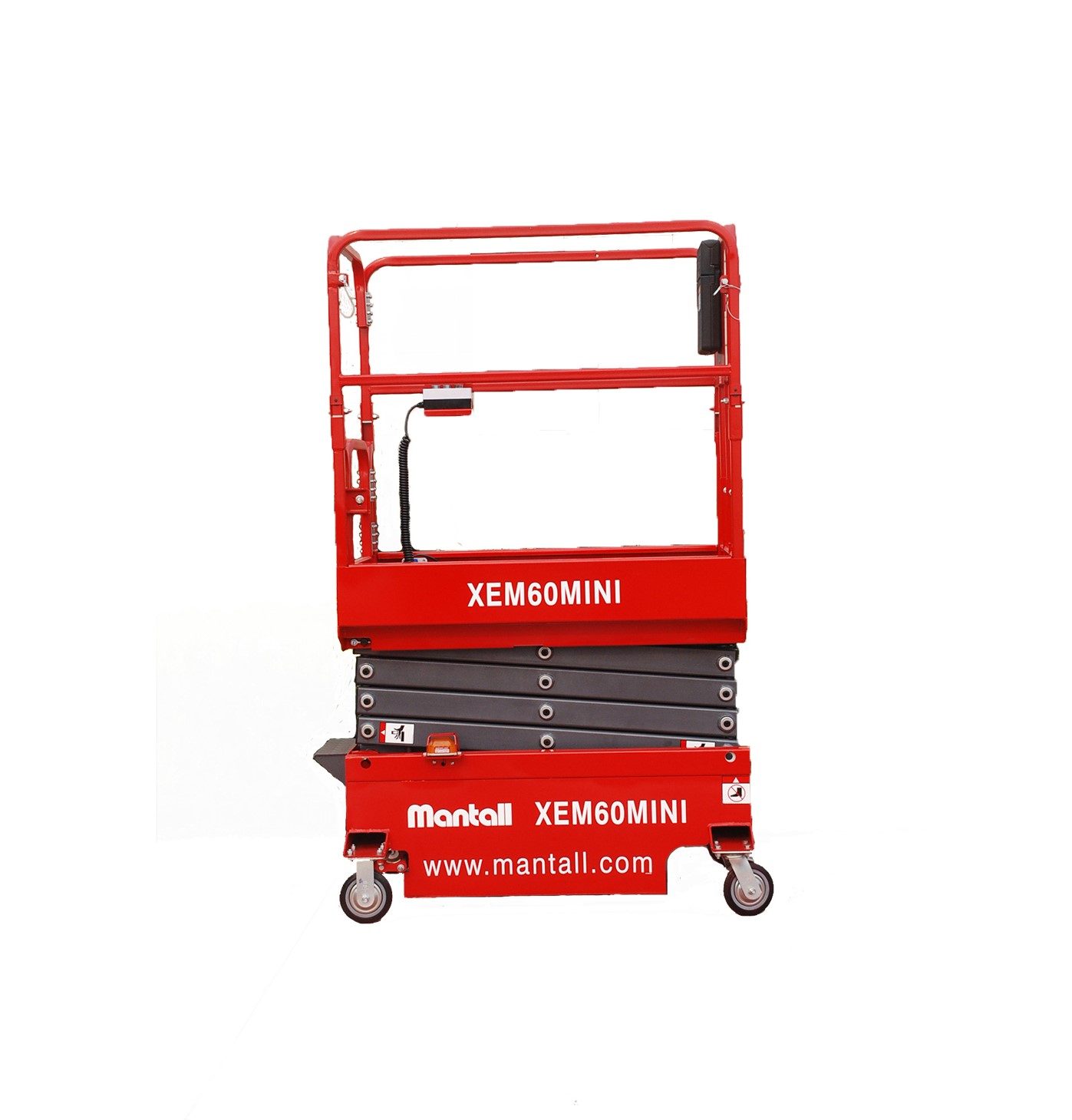

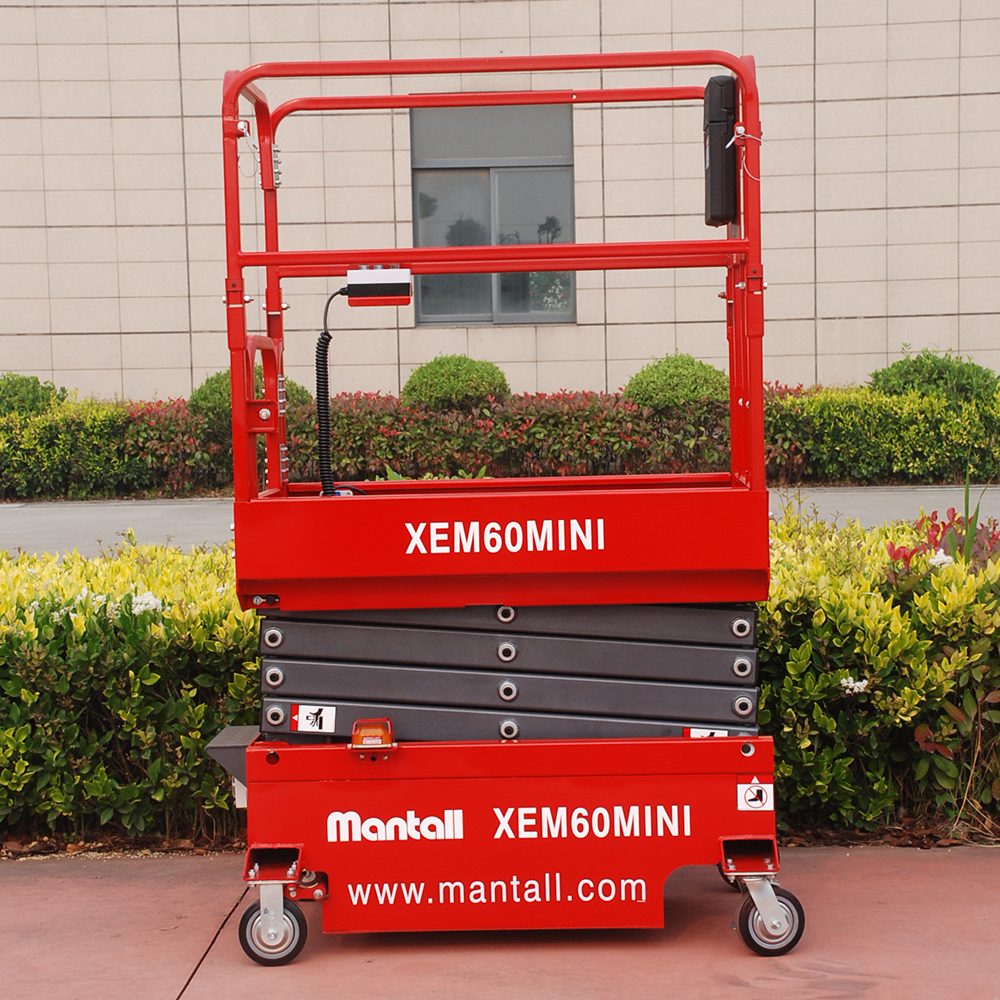

XEM-50/60 MINI
| Model | XEM-50MINI | XEM-60MINI |
| Working height max H1 | 5 m | 6 m |
| Platform height max H2 | 3 m | 4 m |
| Lifting capacity | 240 kg | |
| Dimension of the platform B*C*A | 1.15X0.76X1.1 m | |
| Platform Skirting board height L | 0.15 m | |
| Overall length and width E*F | 1.37X0.76 m | |
| Height stowed D | 1.85 m | 1.94 m |
| Wheelbase G | 1.07 m | |
| Ground clearance H | 0.06 m | |
| Tilt Sensor-front to back | 2° | |
| Tilt Sensor-side to side | 1° | |
| Raising time/Lowering time | 28/24 s | 35/18 s |
| Hydraulic tank capacity | 2 L | |
| Non-marking Tires | 150mm | |
| Max. Platform occupancy | 2 pers | |
| Power source | 12V/100AH | |
| Weight | 480 kg | 550 kg |
| Standard Features |
| Charger Indicator |
| Platform Self-locked door |
| Level indicator |
| Security overhaul rod |
| Emergency Lowering system |
| Emergency stop button |
| Dual front wheel brake |
| Forklift pockets |
| Non-mark brake tires |
| Charge protection system |
| Optional Features |
| AC power to platform |
| Buzzer |
| Flash light |
XE50/60-MINI/ED PLUS
| Model | XE50MINI/ED PLUS | XE60MINI/ED PLUS |
| Working height max H1 | 5.4 m | 6.4 m |
| Platform height max H2 | 3.4 m | 4.4 m |
| Platform extension size | 0.55 m | |
| Lifting capacity | 240 kg | |
| Lifting capacity on the extension | 100 kg | |
| Dimension of the platform B*C*A | 1.28X0.76X1.1 m | |
| Platform length-extended K | 1.83 m | |
| Platform Skirting board height L | 0.17 | 0.17 |
| Overall length and width E*F | 1.49X0.76 | 1.49X0.76 |
| Height stowed D | 1.95 | 2.03 |
| Height-guardrails folded M | 1.5 | 1.59 |
| Wheelbase G | 1.05 | 1.05 |
| Ground clearance H | 0.06 m | |
| Ground clearance-deployed potholes | 0.015 m | |
| Turning radius-inside | 0.35 m | |
| Raised time/Lowering time | 20/17 s | 23/19 s |
| Drive speed-stowed | 3 km/h | |
| Drive speed-raised | 0.8 km/h | |
| Gradeability | 25% | |
| Tilt Sensor (front to back/side to side) | 3° / 2° | |
| Hydraulic tank capacity | 2 L | |
| Non-marking tyres | 230 mm | |
| Max. Platform occupancy | 2 pers | |
| Power source | 24V | |
| Weight | 760 kg | 820 kg |
| Standard Features | ||
| Proportional Controls | ||
| Self-lock gate on platform | ||
| Extended Platform | ||
| Drivable at full height | ||
| Non-marking Tires | ||
| 4*2WD | ||
| Automatic brake system | ||
| Emergency Lowering system | ||
| Emergency stop button | ||
| Explosion-proof of the tubing | ||
| Diagnosis system | ||
| Tilt sensor with Alarm | ||
| Horn | ||
| Flash light | ||
| Hour meter | ||
| Safety Brackets | ||
| Forklift Pockets | ||
| Optional Features | ||
| Overload sensor | ||
| AC power to platform | ||
