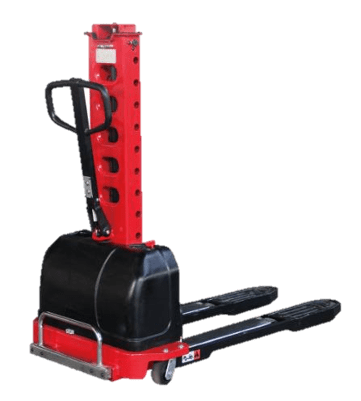

Heli semi electric self loading stacker
From $4,100.00 ex GST
Delivery fees may apply. Contact us for full pricing.
Specifications
Double your delivery time and save labour costs!
Efficient
- Use your self loader and your vehicle to load, unload and deliver your cargo safely and efficiently to your client.
- Thanks to the speed and simplicity of the operation you are able to make even more deliveries.
Safe
- The ergonomic design and simple operation helps you avoid health and safety risks.
- Reduce sick days due to strain.
- The self-loader is very easy and safe to operate.
High-quality
- Superior Heli standard parts and high-class manufacturing ensure reliability and durability.
- Meets international quality standards.
Features:
- Semi or full powered Electric solution for your vehicle and delivery needs.
- Self-Propelled – 100% no heavy duty work.
- Self-loading on to your Van.
- Portable use wherever you are.
- One man delivery – save labour cost.
How to use:
Step 1: Load the Pallet.
Step 2: Lift the Pallet to the Truck.
Step 3: Push out The support leg.
Step 4: Push In the Support Leg
| Model | CBS05J-D-S 0510 | CBS05J-D-S 0513 | |
| Capacity | Q(Kg) | 500 | 500 |
| Load center | C(mm) | 400 | 400 |
| Type of lifting | Electric | Electric | |
| Operating type | Walkie | Walkie | |
| Material | Nylon/PU | Nylon/PU | |
| Wheel base | y(mm) | 860 | 860 |
| Front wheel base | b11(mm) | 380 | 380 |
| Back wheel base | b10(mm) | 670 | 670 |
| Quantity of Steering/Bearing/Balance Wheel | 2/2/6 | 2/2/6 | |
| Bearing wheel size | mm | Φ70×60 | Φ70×60 |
| Steering wheel size | mm | Φ100×50 | Φ100×50 |
| Balance wheel size | mm | Φ40×26 | Φ40×26 |
| Training wheel size | mm | Φ30×26 | Φ30×26 |
| Min.fork height | mm | 90 | 90 |
| Max.fork height | h3(mm) | 1000 | 1300 |
| Fork outside width | mm | 535 | 535 |
| Fork inside width | mm | 225 | 225 |
| Fork length | l(mm) | 1150 | 1150 |
| Single fork size | e/s(mm) | 155/60 | 155/60 |
| Overall length | L1(mm) | 1565 | 1600 |
| Overall width | b1(mm) | 790 | 790 |
| Overall height | h1(mm) | 1640 | 1630 |
| Whole height(after tape file shelf) | h4(mm) | 2300 | 2900 |
| Length of vertical surface to fork | l2(mm) | 1150 | 1150 |
| Min.turning radius | Wa(mm) | 1120 | 1120 |
| Lifting speed(laden/unladen) | mm/s | 80/110 | 80/110 |
| Lowering speed(laden/unladen) | mm/s | 80/80 | 80/80 |
| Lift motor | Kw | 12/0.8 | 12V0.8 |
| Battery capacity | V/Ah | 12/33 | 12/33 |
| Battery weight | Kg | 10 | 10 |
| Net weight | Kg | 186 | 219 |
Lift up to 500kg with the self-loading stacker in to vans and light trucks. After loading the cargo, the self-loader stacker climbs into the vehicle itself. The space needed is the same as with a hand pallet truck. The unloading process is just as straightforward as the loading.
