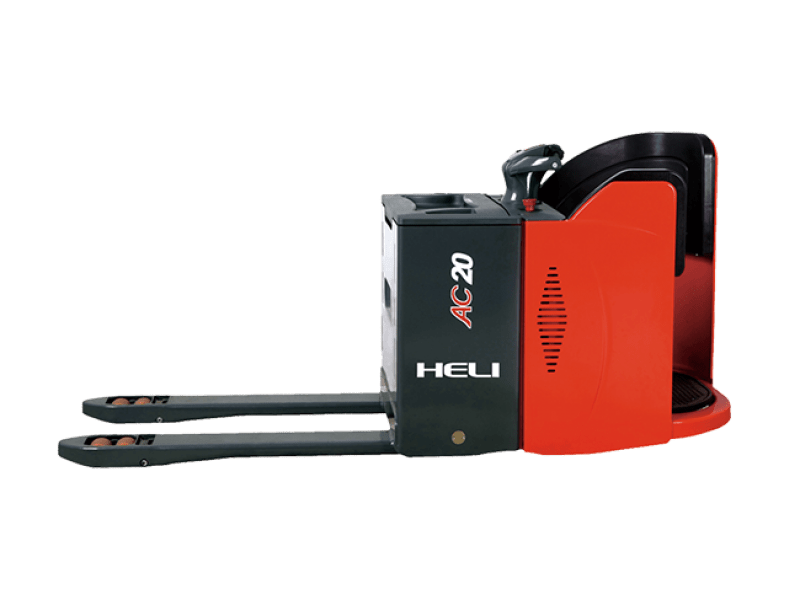

Heli 2t electric pallet truck (CBD20-490)
Delivery fees may apply. Contact us for full pricing.
Specifications
Key Highlights:
- High running speed 11km/h
- ESP-Mute, energy saving, lighter
- AC driving system – low noises, quiet, without carbon brush and free maintenance
- Electric lifting – Rapid, efficient, electricity limit switch is standard
- AC controller
- New safety features – soft stop via intelligent control curve
- Perfect for unloading trucks, warehousing requirements, workplace deliveries or anywhere all day operation is required
| Model | Unit | CBD20-490 |
|---|---|---|
| Power Unit | Battery | |
| Wheels Type | PU | |
| Rated Capacity | kg | 2000 |
| Load Center | mm | 600 |
| Max. Lifting Height | mm | 120 |
| Fork Lowered Height | mm | 85 |
| Overall Length | mm | 2465 |
| Overall Width | mm | 790 |
| Overall Height (With Handle) | mm | 1172 |
| Drive Motor | KW | AC 3 |
| Lift Motor | KW | DC 1.2 |
| Controller | ZAPI | |
| Battery (Voltage/Capacity) | V/Ah | 24/280 |
