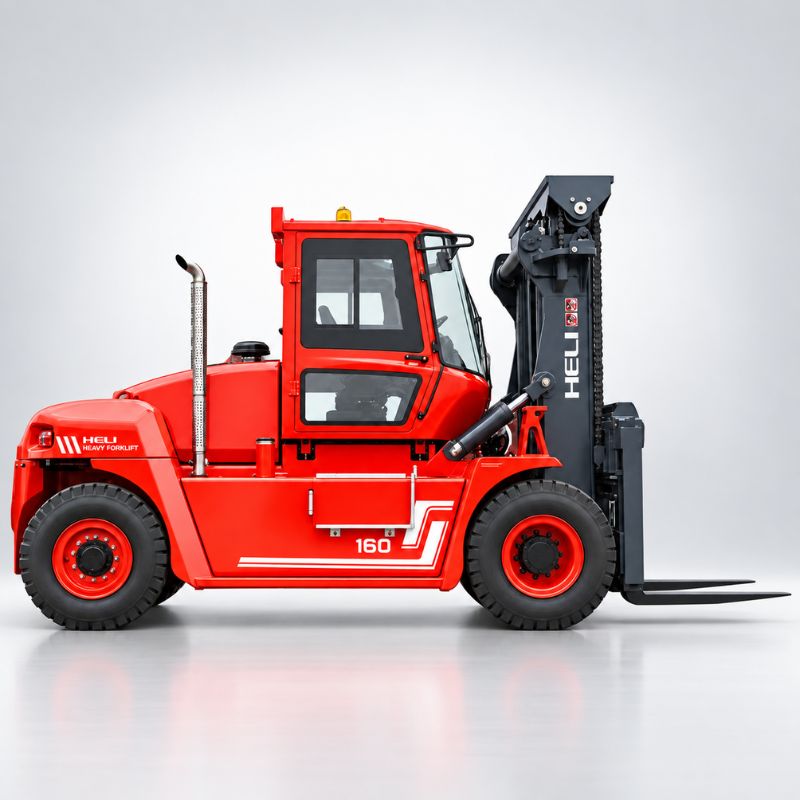

HELI CPCD160-YCG-12 16 Tonne Forklift with 1200mm Load Centre
$189,000.00 ex GST
Delivery fees may apply. Contact us for full pricing.
Specifications
The HELI CPCD160-YCG-12 16 tonne forklift is a heavy duty diesel forklift configured for demanding industrial lifting where load size, load centre and stability matter. This unit is rated at 16,000kg at a 1200mm load centre and is fitted with a 4500mm 2-stage mast, 3000mm forks and a 2800mm wide sideshift fork positioner.
The machine currently in stock is powered by a Yuchai YCA07175-T304 EU II diesel engine and includes pneumatic tyres, an enclosed cabin, warm and cold air conditioning, backward camera, Australian OPS, suspension seat, battery isolator switch and full LED lighting.
Current stock unit: CPCD160-YCG-12
Stock / serial reference: 011603P7428
Rated capacity: 16,000kg @ 1200mm load centre
Mast: 4500mm 2-stage
Forks: 3000mm
16 Tonne Capacity at a 1200mm Load Centre
One of the most important features of this particular CPCD160-YCG-12 is its 1200mm load centre rating. That makes this machine especially relevant for businesses handling larger or deeper loads where a conventional 600mm load centre rating may not reflect the real application.
A forklift’s stated capacity should always be considered together with the load centre, lift height, load dimensions, attachment configuration and operating conditions. This unit is specifically configured around a rated capacity of 16,000kg at 1200mm load centre.
If you know the weight, dimensions and required lift height of the load you need to move, Allied Forklifts can help assess whether this configuration is suitable for the job.
Built for Heavy Industrial Materials Handling
The CPCD160-YCG-12 is designed for heavy materials handling applications where standard warehouse forklifts simply do not have the required capacity or physical size.
Typical applications may include:
- Heavy manufacturing
- Steel and fabrication facilities
- Mining and resources support operations
- Ports, transport and logistics yards
- Large machinery handling
- Industrial equipment movement
- Infrastructure and construction support
4500mm 2-Stage Mast and 3000mm Forks
This stock machine is fitted with a 4500mm 2-stage mast, giving it useful lift height for heavy industrial loads while retaining a robust heavy duty mast configuration.
The 3000mm forks provide additional fork length for larger loads, while the 2800mm wide sideshift fork positioner gives the operator greater flexibility when lining up with loads of different widths.
Operator Comfort and Site Visibility
Heavy forklifts can spend long periods working in demanding yards and industrial environments, so operator comfort and visibility are important. This unit is equipped with an enclosed cabin, warm and cold air conditioning, suspension seat, backward camera and full LED lighting.
It also includes Australian OPS and a battery isolator switch as part of the current stock configuration.
HELI CPCD160-YCG-12 Specifications
| Model | CPCD160-YCG-12 |
| Stock / Serial Reference | 011603P7428 |
| Series | HELI G Series economical heavy duty forklift truck |
| Rated Capacity | 16,000kg @ 1200mm load centre |
| Engine | Yuchai YCA07175-T304 EU II diesel |
| Tyres | Pneumatic |
| Mast | 2-stage 4500mm |
| Hydraulics | 4 valves and 2 IHRs |
| Attachment | 2800mm wide sideshift fork positioner |
| Fork Length | 3000mm |
| Cabin | Enclosed cabin with warm and cold A/C |
| Camera | Backward camera |
| Operator System | Australian OPS |
| Seat | Suspension seat |
| Electrical | Battery isolator switch |
| Lighting | Full LED lights |
Why the 1200mm Load Centre Matters
Load centre is one of the specifications that can dramatically change the real lifting requirement of a forklift. A long or deep load moves the load’s centre of gravity further forward, increasing the leverage acting on the machine.
That is why this machine’s 16 tonne rating at a 1200mm load centre is such an important part of its specification. Buyers handling large industrial loads should compare the actual load dimensions and centre of gravity against the manufacturer’s capacity information rather than relying on tonnage alone.
A Different 16 Tonne Forklift Configuration
Not every 16 tonne forklift is configured for the same job. Mast height, fork length, attachments and especially load centre can materially change which machine is suitable for a particular application.
This CPCD160-YCG-12 is configured around a 1200mm load centre, a 4500mm mast and 3000mm forks, making it a distinct heavy duty setup for customers working with larger industrial loads.
16 Tonne Forklift for Sale in Perth
This HELI CPCD160-YCG-12 is currently offered by Allied Forklifts in Perth. If your application involves heavy equipment, large fabricated components, machinery, steel or other substantial loads, speak with our team about your load dimensions and operating requirements.
We can help you compare load weight, load centre, lift height and attachment requirements before confirming whether this 16 tonne forklift is the right match.
Enquire About the HELI CPCD160-YCG-12
Tell us the load weight, load dimensions, required lift height and operating environment and we can help determine whether this 16 tonne 1200mm load centre forklift is suitable for your application.
HELI CPCD160-YCG-12 FAQs
How much can the HELI CPCD160-YCG-12 lift?
This stock unit is rated at 16,000kg at a 1200mm load centre. Actual allowable lifting capacity must still be checked against the manufacturer’s capacity information for the specific load, lift height and operating configuration.
What mast is fitted to this 16 tonne forklift?
The machine is fitted with a 2-stage 4500mm mast.
How long are the forks?
This CPCD160-YCG-12 is fitted with 3000mm forks.
Does it have a fork positioner?
Yes. The current machine has a 2800mm wide sideshift fork positioner.
What engine is fitted?
The machine currently in stock is fitted with a Yuchai YCA07175-T304 EU II diesel engine.
Does the forklift have an enclosed cabin?
Yes. It has an enclosed cabin with warm and cold air conditioning, together with a suspension seat, backward camera and full LED lighting.
Why is a 1200mm load centre important?
A larger load centre is relevant when handling longer or deeper loads because the load’s centre of gravity sits further forward. This particular machine is rated at 16,000kg at a 1200mm load centre, which is a key point of difference in its configuration.
Is this HELI 16 tonne forklift available in Perth?
Yes. This CPCD160-YCG-12 is the current stock specification being offered by Allied Forklifts. Contact us to confirm availability before travelling to inspect the machine.
